VESA Local Bus video chips/cards benchmarks

VESA Local Bus video chips/cards benchmark test results

Test setup: 4DMS=HL3G-L4-VI (SiS 85C471 ST) motherboard, in BIOS "load setup defaults" what I have done; Intel DX4 OverDrive (DX4ODPR100) CPU; 8MB FPM memory (originally I have started with 64MB memory, but Wintune 2.0 produces "Division by zero" with 64MB memory); 256KB motherboard (level 2) cache.
I chose this motherboard for this test because it has the best compatibility with the cards among my VLB motherboards (you see this on a table).
Software environment: MS-DOS 6.22, only HIMEM.SYS (from MS-DOS 6.22) has loaded (and I have run benchmarks from command promt, not from a commander/shell); or MS-DOS 6.22 + HINEN.SYS and Windows 3.1 with Win32s 1.30 and WinG 1.0

My tests doesn't match (not "compatible") with other 486 benchmarks, because I didn't want to compare my results to other people's results, but I wanted to compare the cards to each other, for example the Doom II and Quake tests are fullscreen.
I don't have many VLB cards, I focused on collecting rarer, untested cards. You can find results for the more common cards on other pages like https://dependency-injection.com/vlb-vga-group-test/.

DOS

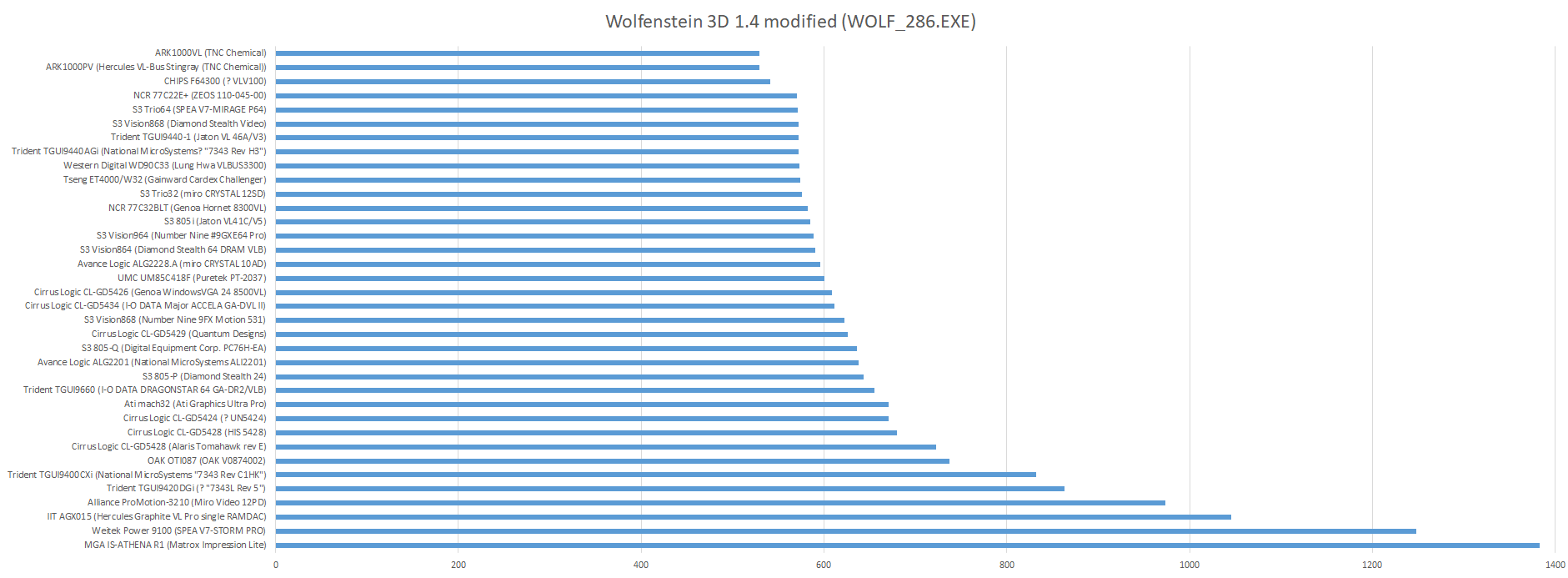

Wolfenstein 3D 1.4 modified (WOLF_286.EXE earliest source by Thandor); timedemo; 712 frames. Results are times (so smaller is better).
Video chip (video card)	comment for the card	results (ticks)
ARK1000VL (TNC Chemical)	Waitstate 0	529
ARK1000PV (Hercules VL-Bus Stingray (TNC Chemical))	Waitstate 0	529
CHIPS F64300 (? VLV100)		541
NCR 77C22E+ (ZEOS 110-045-00)		570
S3 Trio64 (SPEA V7-MIRAGE P64)		571
S3 Vision868 (Diamond Stealth Video)		572
Trident TGUI9440-1 (Jaton VL 46A/V3)		572
Trident TGUI9440AGi (National MicroSystems? "7343 Rev H3")	bus speed: ≤33MHz	572
Western Digital WD90C33 (Lung Hwa VLBUS3300)	JP1: 1-2; 3-4	573
Tseng ET4000/W32 (Gainward Cardex Challenger)	RAMDAC snoop enabled	574
S3 Trio32 (miro CRYSTAL 12SD)		576
NCR 77C32BLT (Genoa Hornet 8300VL)		582
S3 805i (Jaton VL41C/V5)		585
S3 Vision964 (Number Nine #9GXE64 Pro)		589
S3 Vision864 (Diamond Stealth 64 DRAM VLB)		590
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Waitstate 0	596
UMC UM85C418F (Puretek PT-2037)		600
Cirrus Logic CL-GD5426 (Genoa WindowsVGA 24 8500VL)		609
Cirrus Logic CL-GD5434 (I-O DATA Major ACCELA GA-DVL II)		611
S3 Vision868 (Number Nine 9FX Motion 531)		622
Cirrus Logic CL-GD5429 (Quantum Designs)		626
S3 805-Q (Digital Equipment Corp. PC76H-EA)		636
Avance Logic ALG2201 (National MicroSystems ALI2201)		638
S3 805-P (Diamond Stealth 24)		643
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Waitstate auto	655
Ati mach32 (Ati Graphics Ultra Pro)		671
Cirrus Logic CL-GD5424 (? UN5424)		671
Cirrus Logic CL-GD5428 (HIS 5428)		680
Cirrus Logic CL-GD5428 (Alaris Tomahawk rev E)		723
OAK OTI087 (OAK V0874002)	VESA, turbo, 486 mode and UniVBE 5.1	737
Trident TGUI9400CXi (National MicroSystems "7343 Rev C1HK")	bus speed: <33MHz	832
Trident TGUI9420DGi (? "7343L Rev 5")	bus speed: ≤33MHz	863
Alliance ProMotion-3210 (Miro Video 12PD)		973
IIT AGX015 (Hercules Graphite VL Pro single RAMDAC)		1045
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	1248
MGA IS-ATHENA R1 (Matrox Impression Lite)	setvga -m2	1383

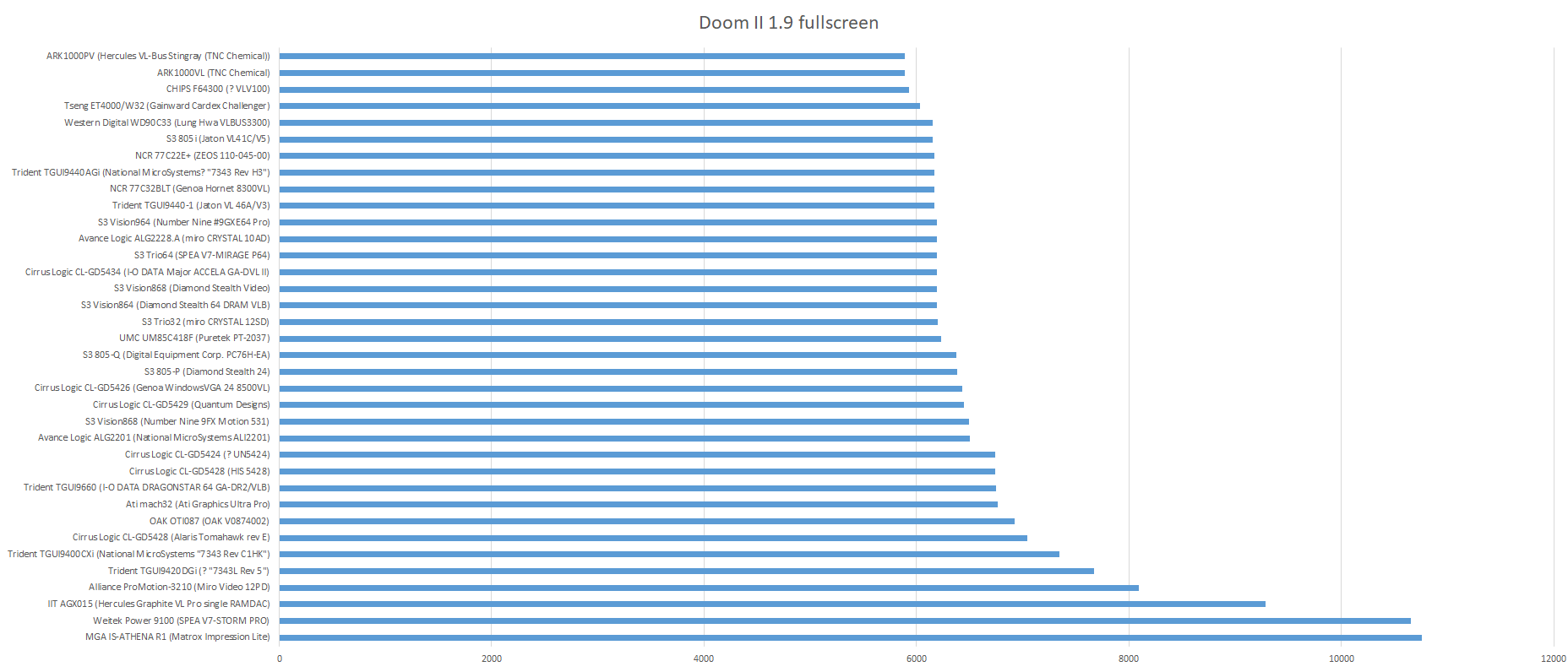

Doom II v1.9; graphic detail: high; fullscreen (no status bar); no music; no sound; timedemo demo3; 4471 frames. Results are times (so smaller is better).
Video chip (video card)	comment for the card	results (realtics)
ARK1000PV (Hercules VL-Bus Stingray (TNC Chemical))	Jumper: Waitstate 0	5889
ARK1000VL (TNC Chemical)	Jumper: Waitstate 0	5891
CHIPS F64300 (? VLV100)		5927
Tseng ET4000/W32 (Gainward Cardex Challenger)	Jumper: RAMDAC snoop enabled	6037
Western Digital WD90C33 (Lung Hwa VLBUS3300)	JP1: 1-2; 3-4	6153
S3 805i (Jaton VL41C/V5)		6154
NCR 77C22E+ (ZEOS 110-045-00)		6167
Trident TGUI9440AGi (National MicroSystems? "7343 Rev H3")	Jumper: bus speed: ≤33MHz	6168
NCR 77C32BLT (Genoa Hornet 8300VL)		6170
Trident TGUI9440-1 (Jaton VL 46A/V3)		6172
S3 Vision964 (Number Nine #9GXE64 Pro)		6190
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Jumper: Waitstate 0	6190
S3 Trio64 (SPEA V7-MIRAGE P64)		6192
Cirrus Logic CL-GD5434 (I-O DATA Major ACCELA GA-DVL II)		6192
S3 Vision868 (Diamond Stealth Video)		6193
S3 Vision864 (Diamond Stealth 64 DRAM VLB)		6196
S3 Trio32 (miro CRYSTAL 12SD)		6197
UMC UM85C418F (Puretek PT-2037)		6228
S3 805-Q (Digital Equipment Corp. PC76H-EA)		6377
S3 805-P (Diamond Stealth 24)		6384
Cirrus Logic CL-GD5426 (Genoa WindowsVGA 24 8500VL)		6429
Cirrus Logic CL-GD5429 (Quantum Designs)		6446
S3 Vision868 (Number Nine 9FX Motion 531)		6492
Avance Logic ALG2201 (National MicroSystems ALI2201)		6503
Cirrus Logic CL-GD5424 (? UN5424)		6741
Cirrus Logic CL-GD5428 (HIS 5428)		6742
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Jumper: Waitstate auto	6749
Ati mach32 (Ati Graphics Ultra Pro)		6763
OAK OTI087 (OAK V0874002)	Jumpers: VESA, turbo, 486 mode. Program: UniVBE 5.1	6921
Cirrus Logic CL-GD5428 (Alaris Tomahawk rev E)		7044
Trident TGUI9400CXi (National MicroSystems "7343 Rev C1HK")	Jumper: bus speed: <33MHz	7342
Trident TGUI9420DGi (? "7343L Rev 5")	Jumper: bus speed: ≤33MHz	7672
Alliance ProMotion-3210 (Miro Video 12PD)		8092
IIT AGX015 (Hercules Graphite VL Pro single RAMDAC)		9283
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	10657
MGA IS-ATHENA R1 (Matrox Impression Lite)	Program: setvga -m2	10760
Note: On most VLB system even with the fastest BIOS settings, it usually still slow to reach 35 frames per second (the capped frame per second for gameplay of the Doom 1 and 2), with graphic detail: high; fullscreen -1 (with status bar); General Midi music and Sound Blaster Sound FX with 8 number of sound effects to mix: Cyrix 5x86 120 with LSSER bit and Linear Burst (40MHz front-side bus speed) + ARK1000PV waitstate=1: 35.5307 frame per second AMD 486 DX4-120SV8B (40MHz front-side bus speed) + ARK1000PV waitstate=1: 34.3725 frame per second AMD 5x86 133@120 (40MHz front-side bus speed) + ARK1000PV waitstate=1: 34.3725 frame per second AMD 5x86 133 (33MHz front-side bus speed) + ARK1000PV waitstate=0: 33.5254 frame per second NexGen Nx586 P100 (??MHz front-side bus speed) + ARK1000PV waitstate=0: 32.6179 frame per second Intel Pentium OverDrive 83 (33MHz front-side bus speed) + ARK1000PV waitstate=0: 32.0479 frame per second Intel 486 DX4-100 (33MHz front-side bus speed) + ARK1000PV waitstate=0: 30.7622 frame per second Intel 486 DX4WB-100 (33MHz front-side bus speed) + ARK1000PV waitstate=0: 30.7622 frame per second Intel 486 DX4 ODPR 100 (33MHz front-side bus speed) + ARK1000PV waitstate=0: 30.6728 frame per second Cyrix 5x86 100 with LSSER bit and Linear Burst (33MHz front-side bus speed) + ARK1000PV waitstate=1: 29.8901 frame per second AMD 486 DX4-100SV8B (33MHz front-side bus speed) + ARK1000PV waitstate=0: 29.5550 frame per second NexGen Nx586 P90 (??MHz front-side bus speed) + ARK1000PV waitstate=0: 29.4930 frame per second NexGen Nx586 P80 (??MHz front-side bus speed) + ARK1000PV waitstate=0: 26.2119 frame per second Cyrix 486 DX4-100 (33MHz front-side bus speed) + ARK1000PV waitstate=0: 24.6782 frame per second NexGen Nx586 P75 (??MHz front-side bus speed) + ARK1000PV waitstate=0: 24.3645 frame per second

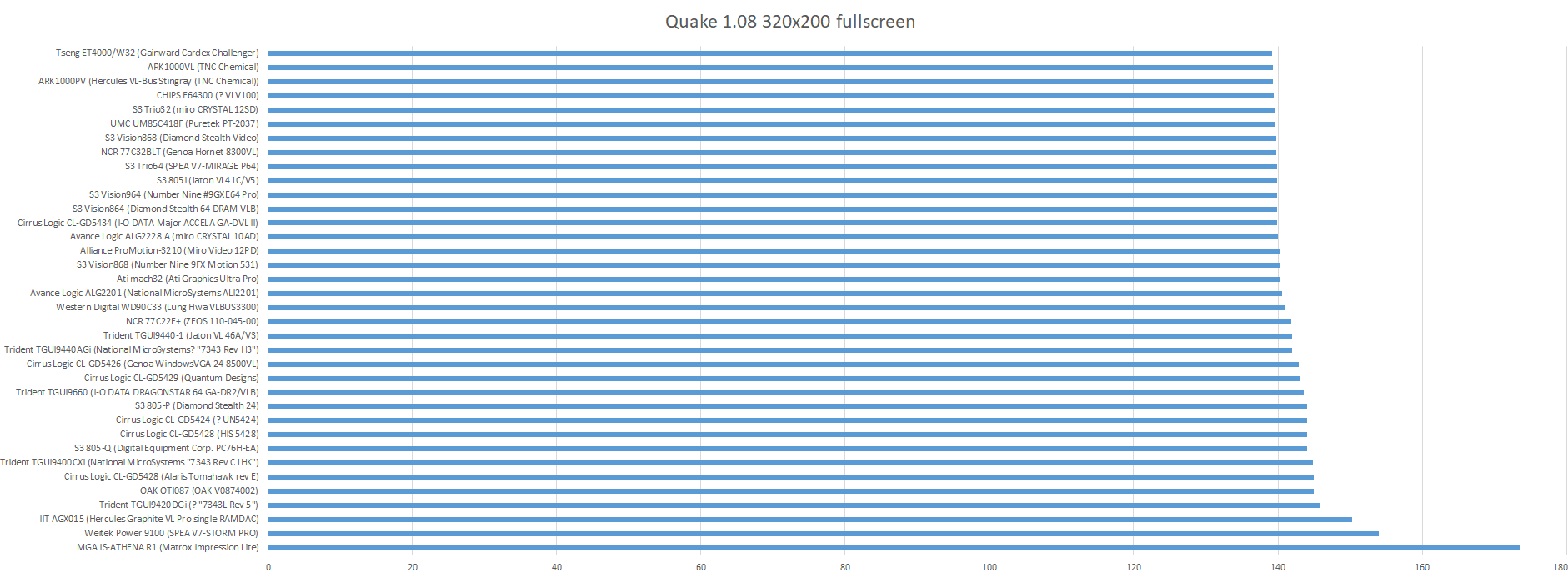

Quake v1.08; 320x200; fullscreen (no status bar); no sound; no CD audio; timedemo demo3.dem; 1090 frames. Results are seconds (so smaller is better).
Video chip (video card)	comment for the card	results (seconds)
Tseng ET4000/W32 (Gainward Cardex Challenger)	Jumper: RAMDAC snoop enabled	139.2
ARK1000VL (TNC Chemical)	Jumper: Waitstate 0	139.3
ARK1000PV (Hercules VL-Bus Stingray (TNC Chemical))	Jumper: Waitstate 0	139.3
CHIPS F64300 (? VLV100)		139.4
S3 Trio32 (miro CRYSTAL 12SD)		139.6
UMC UM85C418F (Puretek PT-2037)		139.6
S3 Vision868 (Diamond Stealtd Video)		139.8
NCR 77C32BLT (Genoa Hornet 8300VL)		139.8
S3 Trio64 (SPEA V7-MIRAGE P64)		139.9
S3 805i (Jaton VL41C/V5)		139.9
S3 Vision964 (Number Nine #9GXE64 Pro)		139.9
Cirrus Logic CL-GD5434 (I-O DATA Major ACCELA GA-DVL II)		139.9
S3 Vision864 (Diamond Stealtd 64 DRAM VLB)		139.9
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Jumper: Waitstate 0	140
Alliance ProMotion-3210 (Miro Video 12PD)		140.3
S3 Vision868 (Number Nine 9FX Motion 531)		140.4
Ati mach32 (Ati Graphics Ultra Pro)		140.4
Avance Logic ALG2201 (National MicroSystems ALI2201)		140.6
Western Digital WD90C33 (Lung Hwa VLBUS3300)	JP1: 1-2; 3-4	141
NCR 77C22E+ (ZEOS 110-045-00)		141.9
Trident TGUI9440-1 (Jaton VL 46A/V3)		142
Trident TGUI9440AGi (National MicroSystems? "7343 Rev H3")	Jumper: bus speed: ≤33MHz	142
Cirrus Logic CL-GD5426 (Genoa WindowsVGA 24 8500VL)		142.9
Cirrus Logic CL-GD5429 (Quantum Designs)		143
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Jumper: Waitstate auto	143.6
S3 805-P (Diamond Stealtd 24)		144.1
Cirrus Logic CL-GD5424 (? UN5424)		144.1
Cirrus Logic CL-GD5428 (HIS 5428)		144.1
S3 805-Q (Digital Equipment Corp. PC76H-EA)		144.1
Trident TGUI9400CXi (National MicroSystems "7343 Rev C1HK")	Jumper: bus speed: <33MHz	144.8
Cirrus Logic CL-GD5428 (Alaris Tomahawk rev E)		145
OAK OTI087 (OAK V0874002)	Jumpers: VESA; turbo; 486 mode. Program: UniVBE 5.1	145
Trident TGUI9420DGi (? "7343L Rev 5")	Jumper: bus speed: ≤33MHz	145.8
IIT AGX015 (Hercules Graphite VL Pro single RAMDAC)		150.3
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	154
MGA IS-ATHENA R1 (Matrox Impression Lite)	Program: setvga -m2	173.5
Note: A 486 is too slow to play Quake!

All DOS results.
video chips	comment	Wolfenstein 3D 1.4 (smaller is better)	Doom II v1.9 fullscreen (smaller is better)	Quake 1.06 fullscreen (smaller is better)	Quake 1.08 fullscreen (smaller is better)	Chris's 3D Benchmark 320x200x256 Chris's Bench Score (higher is better)	Chris's 3D SVGA Benchmark 640x480x256 Chris's Bench Score (higher is better)	3DBench 1.0C (higher is better)	3D Space Benchmark (higher is better)	Perlmark (higher is better)	PC Player Benchmark 320x200 256 colors (higher is better)	PC Player Benchmark 640x400 256 colors (higher is better)	PC Player Benchmark 640x480 256 colors (higher is better)	PC Player Benchmark 640x400 65536 colors (higher is better)	PC Player Benchmark 640x480 65536 colors (higher is better)
CHIPS F64300 (? VLV100)		541	5927	141.3	139.4	68.5	18.9	62.5	98.00%	541	13.5	5.6	4.9	4.1	3.6
ARK1000VL (TNC Chemical)	Waitstate 0	529	5891	141.3	139.3	68.5	18.5	62.5	98.00%	542	13.5	5.5	4.9	4	3.5
Tseng ET4000/W32 (Gainward Cardex Challenger)	RAMDAC snoop enabled	574	6037	141.2	139.2	68.4	19.1	62.5	97.00%	533	13.5	5.6	4.9	4.1	3.6
ARK1000PV (Hercules VL-Bus Stingray (TNC Chemical))	Waitstate 0	529	5889	141.3	139.3	68.5	18.1	62.5	98.00%	542	13.5	5.4	4.8	3.9	3.4
S3 Trio64 (SPEA V7-MIRAGE P64)		571	6192	141.8	139.9	66.9	18.3	58.8	97.00%	539	13.4	5.5	4.8	4	3.5
S3 Vision868 (Diamond Stealth Video)		572	6193	141.8	139.8	66.9	18.3	58.8	97.00%	538	13.4	5.5	4.8	4	3.5
Trident TGUI9440-1 (Jaton VL 46A/V3)		572	6172	144	142	61.2	18.8	58.8	98.00%	537	13.1	5.6	4.9	4.1	3.6
S3 805i (Jaton VL41C/V5)		585	6154	141.8	139.9	66.9	18.3	58.8	97.50%	538	13.4	5.5	4.8	4	3.5
S3 Vision964 (Number Nine #9GXE64 Pro)		589	6190	141.8	139.9	66.5	18.3	58.8	98.00%	539	13.4	5.5	4.8	4	3.5
NCR 77C32BLT (Genoa Hornet 8300VL)		582	6170	141.8	139.8	66.9	18.1	58.8	97.00%	539	13.4	5.5	4.8	4	3.5
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Waitstate 0	596	6190	142	140	66.5	18.1	58.8	98.00%	538	13.4	5.5	4.8	4	3.5
Western Digital WD90C33 (Lung Hwa VLBUS3300)	JP1: 1-2; 3-4	716	6153	143.6	141	62.5	18.1	58.8	98.00%	539	13.2	5.5	4.8	4.0	3.5
Cirrus Logic CL-GD5434 (I-O DATA Major ACCELA GA-DVL II)		611	6192	141.9	139.9	66.9	18.2	58.8	96.00%	525	13.4	5.5	4.8	4	3.5
S3 Vision864 (Diamond Stealth 64 DRAM VLB)		590	6196	141.9	139.9	66.5	18	58.8	97.00%	538	13.4	5.5	4.8	3.9	3.4
Trident TGUI9440AGi (National MicroSystems? "7343 Rev H3")	bus speed: ≤33MHz	572	6168	144	142	61.2	18.3	58.8	98.00%	537	13.1	5.5	4.8	4	3.5
S3 Trio32 (miro CRYSTAL 12SD)		576	6197	142.2	139.6	66.9	18.3	58.8	97.00%	539	13.4	5.5	4.8	3.7	3.2
S3 Vision868 (Number Nine 9FX Motion 531)		622	6492	142.3	140.4	65.4	17.6	58.8	98.00%	535	13.3	5.4	4.8	4	3.4
Avance Logic ALG2201 (National MicroSystems ALI2201)		638	6503	142.5	140.6	65	17.5	58.8	98.00%	535	13.3	5.4	4.8	4	3.4
Ati mach32 (Ati Graphics Ultra Pro)		671	6763	142.3	140.4	65.4	17.4	58.8	98.00%	535	13.3	5.4	4.8	4	3.5
S3 805-P (Diamond Stealth 24)		643	6384	146	144.1	56.4	18.2	58.8	97.50%	538	12.7	5.5	4.8	4	3.5
Cirrus Logic CL-GD5426 (Genoa WindowsVGA 24 8500VL)		609	6429	144.9	142.9	58.7	17.6	58.8	98.00%	535	12.9	5.2	4.5	3.7	3.2
Cirrus Logic CL-GD5429 (Quantum Designs)		626	6446	145	143	58.7	17.6	58.8	98.00%	535	12.9	5.2	4.5	3.7	3.2
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Waitstate auto	655	6749	145.5	143.6	57.6	16.8	55.5	97.00%	521	12.8	5.4	4.7	3.9	3.4
Cirrus Logic CL-GD5424 (? UN5424)		671	6741	146	144.1	56.4	16.9	55.5	98.00%	522	12.7	5	4.4	3.6	3.1
Cirrus Logic CL-GD5428 (HIS 5428)		680	6742	146	144.1	56.5	16.9	55.5	98.00%	522	12.7	5	4.4	3.6	3.1
S3 805-Q (Digital Equipment Corp. PC76H-EA)		636	6377	146	144.1	56.4	13.1	58.8	98.00%	538	12.7	5	4.4	3.3	2.9
Trident TGUI9400CXi (National MicroSystems "7343 Rev C1HK")	bus speed: <33MHz	832	7342	146.8	144.8	53.6	16.2	50	96.00%	481	12.6	5.3	4.7	3.9	3.3
Cirrus Logic CL-GD5428 (Alaris Tomahawk rev E)		723	7044	147	145	54.3	16.3	52.6	97.50%	500	12.6	5	4.3	3.5	3
Trident TGUI9420DGi (? "7343L Rev 5")	bus speed: ≤33MHz	863	7672	147.8	145.8	52.1	16.2	50	96.00%	463	12.5	5	4.4	3.5	3.1
UMC UM85C418F (Puretek PT-2037)		600	6228	142.2	139.6	66.8	18.1	58.8	97.00%	529	13.4	5.5	4.8	mode not available	mode not available
NCR 77C22E+ (ZEOS 110-045-00)		570	6167	143.8	141.9	61.2	18.1	58.8	98.00%	539	13.1	5.3	4.6	mode not available	mode not available
Alliance ProMotion-3210 (Miro Video 12PD)		973	8092	142.2	140.3	65	16.4	55.5	97.00%	523	13.3	5.4	4.8	mode not available	mode not available
OAK OTI087 (OAK V0874002)	VESA, turbo, 486 mode and UniVBE 5.1	737	6921	146.9	145	54.6	16.3	52.6	97.00%	521	12.6	5	4.4	mode not available	mode not available
IIT AGX015 (Hercules Graphite VL Pro single RAMDAC)		1045	9283	152.7	150.3	45.6	13.8	43.4	55.00%	409	11.8	3.8	3.3	2.4	2.1
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	1248	10657	156.6	154	41	12.2	38.4	54.00%	351	11.3	4.2	3.7	mode not available	mode not available
MGA IS-ATHENA R1 (Matrox Impression Lite)	setvga -m2	1383	10760	175.9	173.5	25.4	4.7	23.8	37.00%	331	9.4	2.2	1.9	mode not available	mode not available

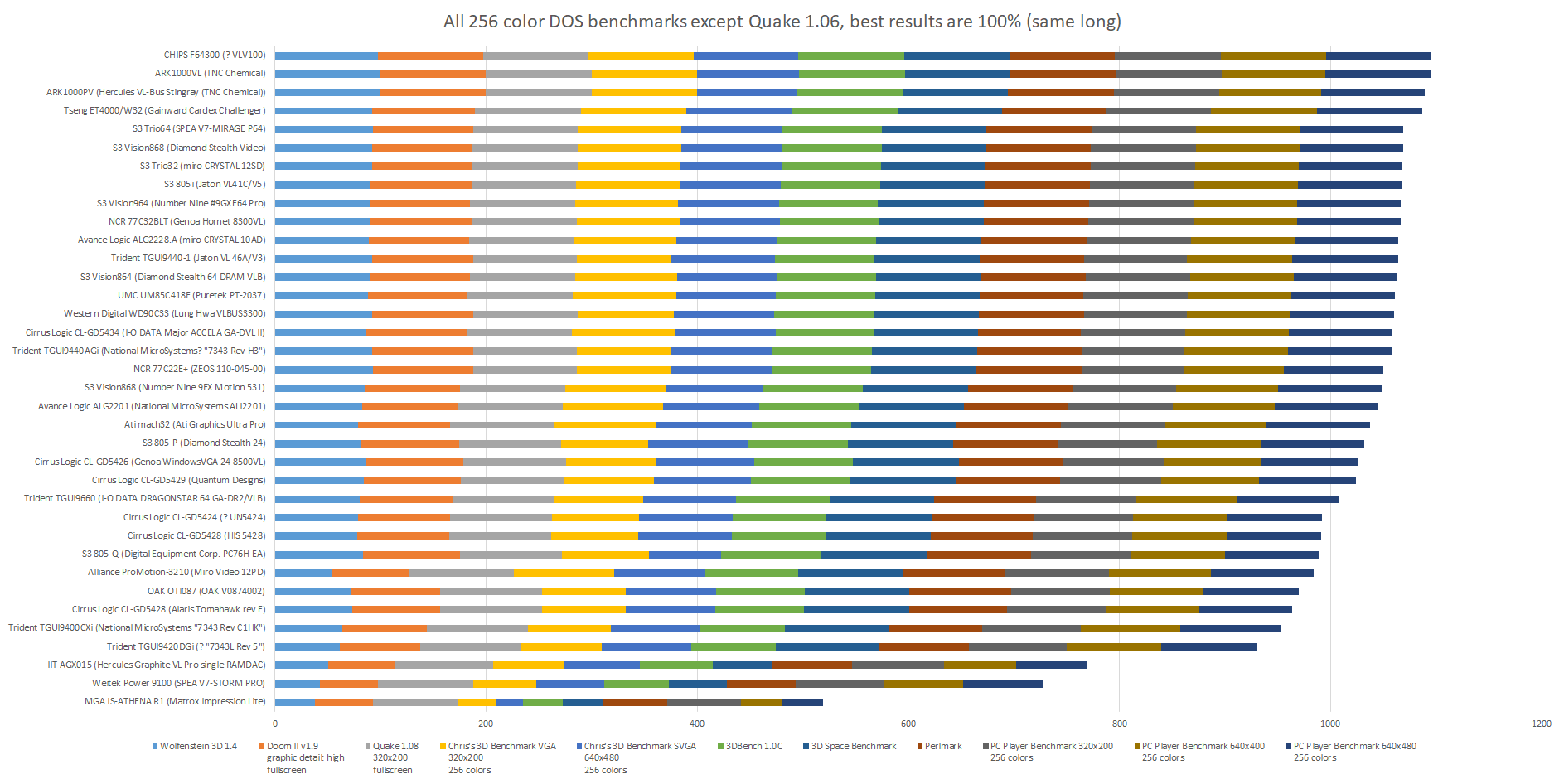

All DOS results in percentage (the best results are the 100%).
video chips	comment	Wolfenstein 3D 1.4	Doom II v1.9 fullscreen	Quake 1.06 fullscreen	Quake 1.08 fullscreen	Chris's 3D Benchmark 320x200x256	Chris's 3D SVGA Benchmark 640x480x256	3DBench 1.0C	3D Space Benchmark	Perlmark	PC Player Benchmark 320x200 256 colors	PC Player Benchmark 640x400 256 colors	PC Player Benchmark 640x480 256 colors	PC Player Benchmark 640x400 65536 colors	PC Player Benchmark 640x480 65536 colors	AVERAGE
CHIPS F64300 (? VLV100)		97.7819%	99.3589%	99.9292%	99.8565%	100.0000%	98.9529%	100.0000%	100.0000%	99.8155%	100.0000%	100.0000%	100.0000%	100.0000%	100.0000%	99.6925%
ARK1000VL (TNC Chemical)	Waitstate 0	100.0000%	99.9660%	99.9292%	99.9282%	100.0000%	96.8586%	100.0000%	100.0000%	100.0000%	100.0000%	98.2143%	100.0000%	97.5610%	97.2222%	99.2628%
Tseng ET4000/W32 (Gainward Cardex Challenger)	RAMDAC snoop enabled	92.1603%	97.5485%	100.0000%	100.0000%	99.8540%	100.0000%	100.0000%	98.9796%	98.3395%	100.0000%	100.0000%	100.0000%	100.0000%	100.0000%	99.0630%
ARK1000PV (Hercules VL-Bus Stingray (TNC Chemical))	Waitstate 0	100.0000%	100.0000%	99.9292%	99.9282%	100.0000%	94.7644%	100.0000%	100.0000%	100.0000%	100.0000%	96.4286%	97.9592%	95.1220%	94.4444%	98.4697%
S3 Trio64 (SPEA V7-MIRAGE P64)		92.6445%	95.1066%	99.5769%	99.4996%	97.6642%	95.8115%	94.0800%	98.9796%	99.4465%	99.2593%	98.2143%	97.9592%	97.5610%	97.2222%	97.3590%
S3 Vision868 (Diamond Stealth Video)		92.4825%	95.0912%	99.5769%	99.5708%	97.6642%	95.8115%	94.0800%	98.9796%	99.2620%	99.2593%	98.2143%	97.9592%	97.5610%	97.2222%	97.3382%
Trident TGUI9440-1 (Jaton VL 46A/V3)		92.4825%	95.4148%	98.0556%	98.0282%	89.3431%	98.4293%	94.0800%	100.0000%	99.0775%	97.0370%	100.0000%	100.0000%	100.0000%	100.0000%	97.2820%
S3 805i (Jaton VL41C/V5)		90.4274%	95.6939%	99.5769%	99.4996%	97.6642%	95.8115%	94.0800%	99.4898%	99.2620%	99.2593%	98.2143%	97.9592%	97.5610%	97.2222%	97.2658%
S3 Vision964 (Number Nine #9GXE64 Pro)		89.8132%	95.1373%	99.5769%	99.4996%	97.0803%	95.8115%	94.0800%	100.0000%	99.4465%	99.2593%	98.2143%	97.9592%	97.5610%	97.2222%	97.1901%
NCR 77C32BLT (Genoa Hornet 8300VL)		90.8935%	95.4457%	99.5769%	99.5708%	97.6642%	94.7644%	94.0800%	98.9796%	99.4465%	99.2593%	98.2143%	97.9592%	97.5610%	97.2222%	97.1884%
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Waitstate 0	88.7584%	95.1373%	99.4366%	99.4286%	97.0803%	94.7644%	94.0800%	100.0000%	99.2620%	99.2593%	98.2143%	97.9592%	97.5610%	97.2222%	97.0117%
Western Digital WD90C33 (Lung Hwa VLBUS3300)	JP1: 1-2; 3-4	92.3211%	95.7094%	98.3983%	98.7943%	91.2409%	94.7644%	94.08%	100.0000%	99.4465%	97.7778%	98.2143%	97.9592%	97.5610%	97.2222%	96.6778%
Cirrus Logic CL-GD5434 (I-O DATA Major ACCELA GA-DVL II)		86.5794%	95.1066%	99.5067%	99.4996%	97.6642%	95.2880%	94.0800%	97.9592%	96.8635%	99.2593%	98.2143%	97.9592%	97.5610%	97.2222%	96.6259%
S3 Vision864 (Diamond Stealth 64 DRAM VLB)		89.6610%	95.0452%	99.5067%	99.4996%	97.0803%	94.2408%	94.0800%	98.9796%	99.2620%	99.2593%	98.2143%	97.9592%	95.1220%	94.4444%	96.5967%
Trident TGUI9440AGi (National MicroSystems? "7343 Rev H3")	bus speed: ≤33MHz	92.4825%	95.4767%	98.0556%	98.0282%	89.3431%	95.8115%	94.0800%	100.0000%	99.0775%	97.0370%	98.2143%	97.9592%	97.5610%	97.2222%	96.4535%
S3 Trio32 (miro CRYSTAL 12SD)		91.8403%	95.0299%	99.2968%	99.7135%	97.6642%	95.8115%	94.0800%	98.9796%	99.4465%	99.2593%	98.2143%	97.9592%	90.2439%	88.8889%	96.1734%
S3 Vision868 (Number Nine 9FX Motion 531)		85.0482%	90.7116%	99.2270%	99.1453%	95.4745%	92.1466%	94.0800%	100.0000%	98.7085%	98.5185%	96.4286%	97.9592%	97.5610%	94.4444%	95.6752%
Avance Logic ALG2201 (National MicroSystems ALI2201)		82.9154%	90.5582%	99.0877%	99.0043%	94.8905%	91.6230%	94.0800%	100.0000%	98.7085%	98.5185%	96.4286%	97.9592%	97.5610%	94.4444%	95.4128%
Ati mach32 (Ati Graphics Ultra Pro)		78.8376%	87.0767%	99.2270%	99.1453%	95.4745%	91.0995%	94.0800%	100.0000%	98.7085%	98.5185%	96.4286%	97.9592%	97.5610%	97.2222%	95.0956%
S3 805-P (Diamond Stealth 24)		82.2706%	92.2462%	96.7123%	96.5996%	82.3358%	95.2880%	94.0800%	99.4898%	99.2620%	94.0741%	98.2143%	97.9592%	97.5610%	97.2222%	94.5225%
Cirrus Logic CL-GD5426 (Genoa WindowsVGA 24 8500VL)		86.8637%	91.6006%	97.4465%	97.4108%	85.6934%	92.1466%	94.0800%	100.0000%	98.7085%	95.5556%	92.8571%	91.8367%	90.2439%	88.8889%	93.0952%
Cirrus Logic CL-GD5429 (Quantum Designs)		84.5048%	91.3590%	97.3793%	97.3427%	85.6934%	92.1466%	94.0800%	100.0000%	98.7085%	95.5556%	92.8571%	91.8367%	90.2439%	88.8889%	92.8997%
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Waitstate auto	80.7634%	87.2574%	97.0447%	96.9359%	84.0876%	87.9581%	88.8000%	98.9796%	96.1255%	94.8148%	96.4286%	95.9184%	95.1220%	94.4444%	92.4772%
Cirrus Logic CL-GD5424 (? UN5424)		78.8376%	87.3609%	96.7123%	96.5996%	82.3358%	88.4817%	88.8000%	100.0000%	96.3100%	94.0741%	89.2857%	89.7959%	87.8049%	86.1111%	90.1792%
Cirrus Logic CL-GD5428 (HIS 5428)		77.7941%	87.3480%	96.7123%	96.5996%	82.4818%	88.4817%	88.8000%	100.0000%	96.3100%	94.0741%	89.2857%	89.7959%	87.8049%	86.1111%	90.1142%
S3 805-Q (Digital Equipment Corp. PC76H-EA)		83.1761%	92.3475%	96.7123%	96.5996%	82.3358%	68.5864%	94.0800%	100.0000%	99.2620%	94.0741%	89.2857%	89.7959%	80.4878%	80.5556%	89.0928%
Trident TGUI9400CXi (National MicroSystems "7343 Rev C1HK")	bus speed: <33MHz	63.5817%	80.2098%	96.1853%	96.1326%	78.2482%	84.8168%	80.0000%	97.9592%	88.7454%	93.3333%	94.6429%	95.9184%	95.1220%	91.6667%	88.3259%
Cirrus Logic CL-GD5428 (Alaris Tomahawk rev E)		73.1674%	83.6031%	96.0544%	96.0000%	79.2701%	85.3403%	84.1600%	99.4898%	92.2509%	93.3333%	89.2857%	87.7551%	85.3659%	83.3333%	87.7435%
Trident TGUI9420DGi (? "7343L Rev 5")	bus speed: ≤33MHz	61.2978%	76.7596%	95.5345%	95.4733%	76.0584%	84.8168%	80.0000%	97.9592%	85.4244%	92.5926%	89.2857%	89.7959%	85.3659%	86.1111%	85.4625%
UMC UM85C418F (Puretek PT-2037)		88.1667%	94.5568%	99.3671%	99.7851%	97.5182%	94.7644%	94.08%	98.9796%	97.6015%	99.2593%	98.2143%	97.9592%	0.0000%	0.0000%	82.8752%
NCR 77C22E+ (ZEOS 110-045-00)		92.8070%	95.4921%	98.1919%	98.0973%	89.3431%	94.7644%	94.0800%	100.0000%	99.4465%	97.0370%	94.6429%	93.8776%	0.0000%	0.0000%	81.9843%
Alliance ProMotion-3210 (Miro Video 12PD)		54.3679%	72.7756%	99.2968%	99.2160%	94.8905%	85.8639%	88.8000%	98.9796%	96.4945%	98.5185%	96.4286%	97.9592%	0.0000%	0.0000%	77.3994%
OAK OTI087 (OAK V0874002)	VESA, turbo, 486 mode and UniVBE 5.1	71.7775%	85.0889%	96.1198%	96.0000%	79.7080%	85.3403%	84.1600%	98.9796%	96.1255%	93.3333%	89.2857%	89.7959%	0.0000%	0.0000%	76.1225%
IIT AGX015 (Hercules Graphite VL Pro single RAMDAC)		50.6220%	63.4385%	92.4689%	92.6148%	66.5693%	72.2513%	69.4400%	56.1224%	75.4613%	87.4074%	67.8571%	67.3469%	58.5366%	58.3333%	69.8907%
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	42.3878%	55.2595%	90.1660%	90.3896%	59.8540%	63.8743%	61.4400%	55.1020%	64.7601%	83.7037%	75.0000%	75.5102%	0.0000%	0.0000%	58.3891%
MGA IS-ATHENA R1 (Matrox Impression Lite)	setvga -m2	38.2502%	54.7305%	80.2729%	80.2305%	37.0803%	24.6073%	38.0800%	37.7551%	61.0701%	69.6296%	39.2857%	38.7755%	0.0000%	0.0000%	42.8406%

Leaderboard of the worst result for each card in all 256-color DOS tests, shown as a percentage (the best results are 100%, see the table above).
Video chip (video card)	comment for the card	the worst result of the card	the test with the worst result
CHIPS F64300 (? VLV100)		97.7819%	Wolfenstein 3D 1.4
ARK1000VL (TNC Chemical)	Jumper: Waitstate 0	96.8586%	Chris's 3D SVGA Benchmark 640x480x256
ARK1000PV (Hercules VL-Bus Stingray (TNC Chemical))	Jumper: Waitstate 0	94.7644%	Chris's 3D SVGA Benchmark 640x480x256
S3 Trio64 (SPEA V7-MIRAGE P64)		92.6445%	Wolfenstein 3D 1.4
S3 Vision868 (Diamond Stealth Video)		92.4825%	Wolfenstein 3D 1.4
Tseng ET4000/W32 (Gainward Cardex Challenger)	Jumper: RAMDAC snoop enabled	92.1603%	Wolfenstein 3D 1.4
S3 Trio32 (miro CRYSTAL 12SD)		91.8403%	Wolfenstein 3D 1.4
Western Digital WD90C33 (Lung Hwa VLBUS3300)	JP1: 1-2; 3-4	91.2409%	Chris's 3D Benchmark 320x200x256
NCR 77C32BLT (Genoa Hornet 8300VL)		90.8935%	Wolfenstein 3D 1.4
S3 805i (Jaton VL41C/V5)		90.4274%	Wolfenstein 3D 1.4
S3 Vision964 (Number Nine #9GXE64 Pro)		89.8132%	Wolfenstein 3D 1.4
S3 Vision864 (Diamond Stealth 64 DRAM VLB)		89.6610%	Wolfenstein 3D 1.4
NCR 77C22E+ (ZEOS 110-045-00)		89.3431%	Chris's 3D Benchmark 320x200x256
Trident TGUI9440-1 (Jaton VL 46A/V3)		89.3431%	Chris's 3D Benchmark 320x200x256
Trident TGUI9440AGi (National MicroSystems? "7343 Rev H3")	Jumper: bus speed: ≤33MHz	89.3431%	Chris's 3D Benchmark 320x200x256
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Jumper: Waitstate 0	88.7584%	Wolfenstein 3D 1.4
UMC UM85C418F (Puretek PT-2037)		88.1667%	Wolfenstein 3D 1.4
Cirrus Logic CL-GD5434 (I-O DATA Major ACCELA GA-DVL II)		86.5794%	Wolfenstein 3D 1.4
Cirrus Logic CL-GD5426 (Genoa WindowsVGA 24 8500VL)		85.6934%	Chris's 3D Benchmark 320x200x256
S3 Vision868 (Number Nine 9FX Motion 531)		85.0482%	Wolfenstein 3D 1.4
Cirrus Logic CL-GD5429 (Quantum Designs)		84.5048%	Wolfenstein 3D 1.4
Avance Logic ALG2201 (National MicroSystems ALI2201)		82.9154%	Wolfenstein 3D 1.4
S3 805-P (Diamond Stealth 24)		82.2706%	Wolfenstein 3D 1.4
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Jumper: Waitstate auto	80.7634%	Wolfenstein 3D 1.4
Ati mach32 (Ati Graphics Ultra Pro)		78.8376%	Wolfenstein 3D 1.4
Cirrus Logic CL-GD5424 (? UN5424)		78.8376%	Wolfenstein 3D 1.4
Cirrus Logic CL-GD5428 (HIS 5428)		77.7941%	Wolfenstein 3D 1.4
Cirrus Logic CL-GD5428 (Alaris Tomahawk rev E)		73.1674%	Wolfenstein 3D 1.4
Alliance ProMotion-3210 (Miro Video 12PD)		71.7775%	Wolfenstein 3D 1.4
S3 805-Q (Digital Equipment Corp. PC76H-EA)		68.5864%	Chris's 3D Benchmark 320x200x256
Trident TGUI9400CXi (National MicroSystems "7343 Rev C1HK")	Jumper: bus speed: <33MHz	63.5817%	Wolfenstein 3D 1.4
Trident TGUI9420DGi (? "7343L Rev 5")	Jumper: bus speed: ≤33MHz	61.2978%	Wolfenstein 3D 1.4
OAK OTI087 (OAK V0874002)	Jumpers: VESA, turbo, 486 mode. Program: UniVBE 5.1	54.3679%	Wolfenstein 3D 1.4
IIT AGX015 (Hercules Graphite VL Pro single RAMDAC)		50.6220%	Wolfenstein 3D 1.4
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	42.3878%	Wolfenstein 3D 1.4
MGA IS-ATHENA R1 (Matrox Impression Lite)	Program: setvga -m2	24.6073%	Chris's 3D SVGA Benchmark 640x480x256

Note: Although the UMC UM85C418F cannot run the PC Player Benchmark 65536 colors tests (even with UniVBE 5.0), it can run 65536-color games like The Last Express and Alien Trilogy when using UniVBE 5.0.

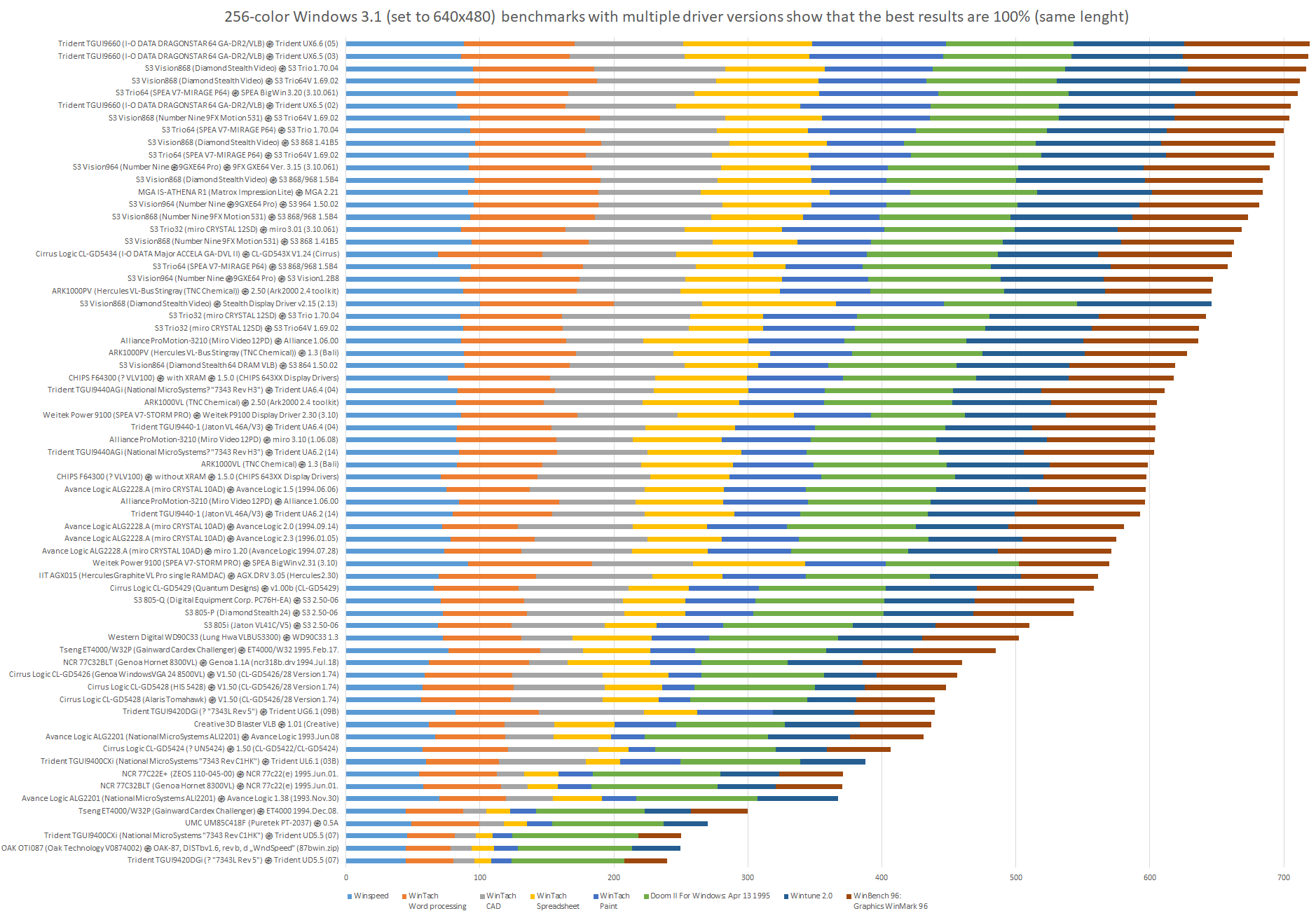

Windows 3.1 - 256-color (Windows resolution is 640x480)

All Windows 3.1 drivers 256 color results (Windows resolution is 640x480).
All minimum and maximum results are based on 4 runs.	comment	driver	Winspeed (higher is better)		WinTach Word processing (higher is better)		WinTach CAD (higher is better)		WinTach Spreadsheet (higher is better)		WinTach Paint (higher is better)		Doom II For Windows: Apr 13 1995 windowed fullscreen -2 (smaller is better)		Wintune 2.0 Kpixel/sec (higher is better)		WinBench 96: Graphics WinMark 96 (higher is better)
All minimum and maximum results are based on 4 runs.	comment	driver	min	max	min	max	min	max	min	max	min	max	min	max	min	max	min	max
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Waitstate auto	Trident UX6.6 (05)	803	832	19.52	19.8	57.38	59.36	58.14	60.38	66.8	70.98	7496	7728	7176	8110	7.64	8.29
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Waitstate auto	Trident UX6.5 (03)	779	816	18.94	19.8	59.36	63.76	56.06	60.38	66.8	71.06	7516	7625	7322	8146	7.83	8.1
S3 Vision868 (Diamond Stealth Video)		S3 Trio 1.70.04	870	897	21.42	21.44	68.88	71.76	44.86	46.18	54.06	56.82	7250	7333	8384	8549	7.06	7.98
S3 Vision868 (Diamond Stealth Video)		S3 Trio64V 1.69.02	851	919	21.78	22.16	61.48	66.22	46.16	47.56	54.06	56.82	7284	7622	8096	9073	7.11	8.05
S3 Trio64 (SPEA V7-MIRAGE P64)		SPEA BigWin v3.26, Release 0396	754	774	19.8	20.12	66.22	68.88	56.06	58.14	59.76	63.08	7248	7578	8335	9139	6.39	6.63
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Waitstate auto	Trident UX6.5 (02)	756	797	18.94	19.22	57.38	61.48	56.06	60.38	63.14	70.98	7459	7660	7795	8124	7.11	7.71
S3 Vision868 (Number Nine 9FX Motion 531)		S3 Trio64V 1.69.02	854	873	22.94	22.94	66.22	68.88	43.6	44.86	54.1	56.76	7370	7642	7662	8230	6.86	7.78
S3 Trio64 (SPEA V7-MIRAGE P64)		S3 Trio 1.70.04	843	885	20.42	20.42	68.88	71.76	41.3	43.58	54.06	56.86	7273	7538	8028	8553	7.15	7.7
S3 Vision868 (Diamond Stealth Video)		S3 868 1.41B5	875	921	22.16	22.54	66.2	71.7	43.6	44.86	39.16	40.56	7268	7486	8281	9064	6.8	7.77
S3 Trio64 (SPEA V7-MIRAGE P64)		S3 Trio64V 1.69.02	831	876	20.76	20.76	66.22	68.88	43.6	44.84	51.6	54.1	7331	7596	8309	8958	6.59	7.14
S3 Vision964 (Number Nine #9GXE64 Pro)		9FX GXE64 Ver. 3.15 (3.10.061)	846	858	21.78	22.16	66.22	71.76	40.24	41.3	39.16	40.56	7342	7507	8227	9037	7.58	8.44
S3 Vision868 (Diamond Stealth Video)		S3 868/968 1.5B4	878	910	22.16	22.54	61.48	63.76	42.4	43.6	37.86	39.16	7321	7624	8739	9106	6.88	8.09
MGA IS-ATHENA R1 (Matrox Impression Lite)		MGA Revision 2.21 (Build 027)	843	855	22.94	23.34	53.82	55.52	58.14	60.38	40.58	42.1	7458	7788	7370	8482	6.6	7.52
S3 Vision964 (Number Nine #9GXE64 Pro)		S3 964 1.50.02	876	899	22.16	22.16	63.76	68.88	40.24	41.3	37.86	39.16	7310	7478	8195	8628	7.2	8.05
S3 Vision868 (Number Nine 9FX Motion 531)		S3 868/968 1.5B4	851	871	21.78	22.54	61.48	63.76	41.3	42.42	37.86	40.56	7320	7473	8199	8607	6.95	7.82
S3 Trio32 (miro CRYSTAL 12SD)		Miro 3.01	789	813	18.42	18.68	61.48	66.22	43.6	44.84	51.64	54.1	7276	7629	6736	7503	7.66	8.15
S3 Vision868 (Number Nine 9FX Motion 531)		S3 868 1.41B5	861	888	20.42	21.08	63.76	68.88	38.28	39.24	36.62	39.16	7166	7590	7758	8658	6.71	7.66
Cirrus Logic CL-GD5434 (I-O DATA Major ACCELA GA-DVL II)		CL-GD543X V1.24 (Cirrus)	612	661	18.42	18.68	68.88	74.82	34.88	34.88	56.82	59.82	7319	7487	6760	7122	8.25	8.77
S3 Trio64 (SPEA V7-MIRAGE P64)		S3 868/968 1.5B4	841	892	19.8	20.12	59.36	61.48	40.24	41.3	39.16	40.56	7365	7763	8117	8449	6.97	7.87
S3 Vision964 (Number Nine #9GXE64 Pro)		S3 Vision1.2B8 (S3 964 1.2B8)	775	809	21.08	21.44	55.52	57.38	43.58	44.84	43.68	45.44	7297	7369	7037	7185	6.51	7.37
ARK1000PV (Hercules VL-Bus Stingray (TNC Chemical))	Waitstate 0	2.50 (Ark2000 2.4 toolkit)	805	827	19.8	20.42	53.8	57.38	44.86	46.18	45.4	47.32	7104	7363	6936	6981	6.44	7.15
S3 Vision868 (Diamond Stealth Video)		Stealth Display Driver v2.15 (2.13)	928	933	23.34	24.22	46.54	47.84	60.34	62.8	54.1	56.76	7167	7325	8875	9638	General protection fault
S3 Trio32 (miro CRYSTAL 12SD)		S3 Trio 1.70.04	775	811	17.92	18.16	66.22	71.76	32.7	33.4	47.32	49.4	7214	7424	7332	7764	6.76	6.85
S3 Trio32 (miro CRYSTAL 12SD)		S3 Trio64V 1.69.02	789	840	17.66	17.66	66.22	68.88	33.4	33.4	47.3	47.32	7310	7577	7164	7540	6.63	7.04
ARK1000PV (Hercules VL-Bus Stingray (TNC Chemical))	Waitstate 0	1.3 (Bali)	804	832	19.8	20.12	50.62	53.82	43.58	44.84	40.56	43.68	7200	7701	6788	7348	6.16	6.83
S3 Vision864 (Diamond Stealth 64 DRAM VLB)		S3 864 1.50.02	805	842	18.68	18.68	61.48	61.48	33.38	33.4	35.48	36.62	7377	7745	7640	7938	6.61	6.78
CHIPS F64300 (? VLV100)	with XRAM Accelerator Cache (cache DRAM)	1.5.0 (CHIPS 643XX Display Drivers)	691	719	17.9	18.42	55.52	57.42	41.3	43.6	47.32	51.6	7197	7346	6049	6720	6.26	7.12
Trident TGUI9440AGi (National MicroSystems? "7343 Rev H3")	bus speed: ≤33MHz	Trident UA6.4 (04)	762	790	16.98	17.66	52.18	53.8	42.42	43.6	37.86	40.56	7346	7745	6002	6247	7.52	8.13
ARK1000VL (TNC Chemical)	Waitstate 0	2.50 (Ark2000 2.4 toolkit)	762	771	15.2	15.74	52.18	53.8	43.6	44.86	43.68	43.68	7358	7396	6795	6896	6.26	7.12
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	Weitek P9100 Display Driver 2.30 (3.10) – 1	784	816	20.42	20.76	52.16	55.56	52.32	52.32	39.16	40.58	10232	10510	6694	7247	5.55	5.87
Trident TGUI9440-1 (Jaton VL 46A/V3)		Trident UA6.4 (04)	757	782	16.54	16.98	50.62	50.64	40.22	41.28	40.56	42.06	7268	7650	5896	6174	7.5	8.11
Alliance ProMotion-3210 (Miro Video 12PD)		1.06.08 (miro)	749	780	17.66	17.9	40.04	41.98	40.24	41.3	43.68	47.3	7451	7927	7447	7798	6.37	7.37
Trident TGUI9440AGi (National MicroSystems? "7343 Rev H3")	bus speed: ≤33MHz	Trident UA6.2 (14)	768	798	17.2	17.66	47.8	49.2	42.42	43.6	33.4	33.4	7271	7558	5470	6223	8.2	8.41
ARK1000VL (TNC Chemical)	Waitstate 0	1.3 (Bali)	758	778	15.2	15.38	52.16	53.82	41.3	42.4	40.56	42.06	7162	7354	7038	7148	5.89	6.54
CHIPS F64300 (? VLV100)	without XRAM Accelerator Cache	1.5.0 (CHIPS 643XX Display Drivers)	617	698	16.98	17.42	59.36	61.48	35.68	36.5	45.4	49.4	7197	7346	5793	6458	6.18	6.87
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Waitstate 0	Avance Logic 1.5 (1994.06.06)	694	703	14.68	14.86	59.36	63.76	35.66	35.68	40.56	43.68	7316	7487	6169	6665	7.3	7.46
Trident TGUI9440-1 (Jaton VL 46A/V3)		Trident UA6.2 (14)	720	759	17.66	17.66	49.18	50.64	40.24	41.28	33.4	34.4	7446	7712	5906	6070	7.95	7.97
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Waitstate 0	Avance Logic 2.0 (1994.09.14)	631	702	13.34	13.62	59.36	63.76	33.38	34.12	40.56	42.06	7540	7835	6210	6566	7.21	7.52
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Waitstate 0	Avance Logic 2.3 (1996.01.05)	716	735	14.86	15.02	59.36	61.48	33.4	34.12	39.16	40.56	7290	7658	6383	6589	5.68	6.25
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Waitstate 0	miro 1.20 (Avance Logic 1994.07.28)	666	699	13.62	13.76	57.38	61.48	34.12	34.88	42.06	43.68	8090	8511	6056	6349	7.14	7.26
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	SPEA BigWin v2.31 (3.10) – 1	830	869	21.78	22.16	50.64	57.42	50.66	52.34	40.56	42.06	7198	7363	System Error		5.5	6.05
IIT AGX015 (Hercules Graphite VL Pro single RAMDAC)		AGX.DRV 3.05 (Hercules 2.30) – 2	633	650	17.2	17.44	61.48	63.76	31.38	31.4	42.06	43.68	7700	7863	6241	6294	4.82	4.99
Cirrus Logic CL-GD5429 (Quantum Designs)		v1.00b (CL-GD5429) – 3	593	626	14.2	15.94	55.52	62.48	27.06	27.06	35.48	36.64	7611	7641	6260	6350	7.26	7.57
S3 805-Q (Digital Equipment Corp. PC76H-EA)		S3 2.50-06	641	672	14.86	14.86	52.16	53.82	28.02	28.04	35.48	36.64	7367	7642	6045	6451	5.99	6.67
S3 805-P (Diamond Stealth 24)		S3 2.50-06	660	686	14.86	15.02	52.16	52.18	27.54	27.54	34.4	35.48	7235	7613	6034	6330	5.95	6.79
S3 805i (Jaton VL41C/V5)		S3 2.50-06	626	649	13.06	13.08	49.18	50.62	23.42	23.42	34.4	34.4	7363	7640	5498	5944	5.56	6.36
Western Digital WD90C33 (Lung Hwa VLBUS3300)	JP1: 1-2; 3-4	WD90C33 1.3	651	692	13.9	14.06	26.9	28.22	35.56	36.52	29.12	29.88	7438	7563	5588	5965	5.65	6.19
Tseng ET4000/W32P (Gainward Cardex Challenger)	RAMDAC snoop enabled	ET4000/W32 1995.Feb.17.	695	725	16.34	16.34	22.94	22.96	30.18	30.18	23.16	23.18	7345	7460	5866	6122	5.24	5.33
Cirrus Logic CL-GD5426 (Genoa WindowsVGA 24 8500VL)		V1.50 (CL-GD5426/28 Version 1.74)	535	560	15.38	15.56	47.84	49.2	29.62	30.18	16.94	16.94	7853	7897	3449	3802	5.02	5.2
Cirrus Logic CL-GD5428 (HIS 5428)		V1.50 (CL-GD5426/28 Version 1.74)	519	542	16.14	16.14	49.18	49.18	25.72	25.74	16.46	16.7	8016	8033	3324	3516	4.96	5.35
Cirrus Logic CL-GD5428 (Alaris Tomahawk)		V1.50 (CL-GD5426/28 Version 1.74)	510	530	15.94	15.94	49.18	49.2	25.3	25.32	16.22	16.22	8224	8269	3227	3461	4.96	5.09
Trident TGUI9420DGi (? "7343L Rev 5")	bus speed: ≤33MHz	Trident UG6.1 (09B)	753	765	14.68	15.02	55.52	57.38	23.78	23.78	39.16	39.18	WinG test freezes		5381	5858	4.68	5.52
Creative 3D Blaster VLB		1.01 (Creative)	566	589	13.34	13.48	26.08	27.32	27.06	27.06	30.7	32.46	8877	8924	5063	5331	4.48	4.53
Avance Logic ALG2201 (National MicroSystems ALI2201)		Avance Logic 1993.Jun.08	611	625	12.44	12.56	25.32	26.48	25.72	25.74	17.46	17.46	7726	8040	5430	5902	4.57	4.79
Cirrus Logic CL-GD5424 (? UN5424)		1.50 (CL-GD5422/CL-GD5424) – 3	523	541	15.02	15.2	47.84	49.2	13.76	13.88	13.68	13.84	7932	8165	3379	3637	3.92	4.22
NCR 77C32BLT (Genoa Hornet 8300VL)		Genoa 1.1A (ncr318b.drv 1994.Jul.18) – 4	562	586	17.66	17.92	20.26	21.24	37.36	37.36	25.8	26.4	11037 – 4	11186 – 4	4981	5376	5.99	6.59
Trident TGUI9400CXi (National MicroSystems "7343 Rev C1HK")	bus speed: <33MHz	Trident UL6.1 (03B)	542	567	12.94	12.94	46.54	46.54	15.54	15.54	30.7	31.54	7898	8313	4431	4581	General protection fault
NCR 77C22E+ (ZEOS 110-045-00)		NCR 77c22(e) 1995.Jun.01.	476	542	13.62	13.9	14.46	14.58	15.54	15.7	17.46	17.74	7494	7714	3837	4311	3.99	4.13
NCR 77C32BLT (Genoa Hornet 8300VL)		NCR 77c22(e) 1995.Jun.01.	524	548	13.76	13.9	14.34	14.46	13.3	13.3	17.46	17.46	7470	7896	3873	4186	4.07	4.39
Avance Logic ALG2201 (National MicroSystems ALI2201)		Avance Logic 1.38 (1993.Nov.30) – 5	630	666	11.66	11.98	24.94	25.7	22.1	22.42	17.46	17.46	7966	8304	5334	5755	Crash
UMC UM85C418F (Puretek PT-2037)		UMC 0.5A	449	460	11.88	12.1	13.34	13.44	10.26	10.32	13.04	13.2	8533	8865	2985	3074	General protection fault
Trident TGUI9400CXi (National MicroSystems "7343 Rev C1HK")	bus speed: <33MHz	Trident UD5.5 (07)	418	434	8.42	8.48	10.96	11.32	7.58	7.58	10.22	10.32	7556	7882	General protection fault		2.7	2.77
OAK OTI087 (Oak Technology V0874002) – 6	VESA. turbo. 486 mode	OAK-87. DISTbv1.6. rev b, d "WndSpeed" (87bwin.zip)	408	417	8.06	8.06	10.96	11.24	10.06	10.06	12.2	12.2	8387	8578	3255	3454	General protection fault
Trident TGUI9420DGi (? "7343L Rev 5")	bus speed: ≤33MHz	Trident UD5.5 (07)	407	421	8.42	8.54	11.18	11.4	7.68	7.72	10.32	10.42	8445	8763	General protection fault		2.68	2.72
Notes: The 'Doom II for Windows' results stand out from the rest: they are much closer to the DOS version's performance. Additionally, CHIPS cache DRAM has no measurable effect on Doom II for Windows, whereas it shows a clear impact in all other tests. You can install the plain ET4000 driver for the ET4000/W32P, but it will perform much slower. I did not include this driver in the benchmark. I cannot start my ATI Mach32 (ATI Graphics Ultra Pro) card under Windows. It seems my card is faulty.

All Windows 3.1 drivers - 256-color (Windows resolution is 640x480) results in percentage (the best results are the 100%).
	comment	driver	Winspeed (higher is better)	WinTach Word processing (higher is better)	WinTach CAD (higher is better)	WinTach Spreadsheet (higher is better)	WinTach Paint (higher is better)	Doom II For Windows: Apr 13 1995 windowed, fullscreen -2 (smaller is better)	Wintune 2.0 Kpixel/sec (higher is better)	WinBench 96: Graphics WinMark 96 (higher is better)	AVERAGE
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Waitstate auto	Trident UX6.6 (05)	87.8560%	82.6745%	81.2387%	96.3540%	99.9420%	95.0276%	82.5690%	93.5958%	89.9072%
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Waitstate auto	Trident UX6.5 (03)	85.7066%	81.4550%	85.6785%	92.9069%	100.0000%	95.5485%	83.5521%	93.5958%	89.8054%
S3 Vision868 (Diamond Stealth Video)		S3 Trio 1.70.04	94.9490%	90.1177%	97.8706%	74.3454%	80.4294%	99.2046%	91.4655%	88.3666%	89.5936%
S3 Vision868 (Diamond Stealth Video)		S3 Trio64V 1.69.02	95.1102%	92.3886%	88.8657%	76.4998%	80.4294%	97.0549%	92.7402%	89.0717%	89.0201%
S3 Trio64 (SPEA V7-MIRAGE P64)		SPEA BigWin v3.26, Release 0396	82.1064%	83.9361%	94.0153%	92.9069%	89.1049%	97.5786%	94.3877%	76.4982%	88.8168%
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Waitstate auto	Trident UX6.5 (02)	83.4498%	80.2355%	82.7140%	92.9069%	97.2871%	95.6875%	85.9882%	87.0740%	88.1679%
S3 Vision868 (Number Nine 9FX Motion 531)		S3 Trio64V 1.69.02	92.7996%	96.4676%	94.0153%	72.2572%	80.4149%	96.3696%	85.8424%	86.0165%	88.0229%
S3 Trio64 (SPEA V7-MIRAGE P64)		S3 Trio 1.70.04	92.8533%	85.8705%	97.8706%	68.4455%	80.4584%	97.6774%	89.5641%	87.2503%	87.4988%
S3 Vision868 (Diamond Stealth Video)		S3 868 1.41B5	96.5073%	93.9865%	95.9638%	72.2572%	57.8268%	98.0548%	93.6909%	85.6052%	86.7366%
S3 Trio64 (SPEA V7-MIRAGE P64)		S3 Trio64V 1.69.02	91.7249%	87.3003%	94.0153%	72.2572%	76.6720%	96.9183%	93.2696%	80.6698%	86.6034%
S3 Vision964 (Number Nine #9GXE64 Pro)		9FX GXE64 Ver. 3.15 (3.10.061)	91.5637%	92.3886%	96.0195%	66.6888%	57.8268%	97.4274%	93.2534%	94.1246%	86.1616%
S3 Vision868 (Diamond Stealth Video)		S3 868/968 1.5B4	96.0774%	93.9865%	87.1538%	70.2685%	55.8683%	96.8016%	96.3917%	87.9553%	85.5629%
MGA IS-ATHENA R1 (Matrox Impression Lite)		MGA Revision 2.21 (Build 027)	91.2413%	97.3087%	76.0891%	96.3540%	59.9739%	94.8905%	85.6263%	82.9612%	85.5556%
S3 Vision964 (Number Nine #9GXE64 Pro)		S3 964 1.50.02	95.3788%	93.1876%	92.3034%	66.6888%	55.8683%	97.8293%	90.8713%	89.6005%	85.2160%
S3 Vision868 (Number Nine 9FX Motion 531)		S3 868/968 1.5B4	92.5309%	93.1876%	87.1538%	68.4455%	56.8838%	97.7963%	90.7795%	86.7803%	84.1947%
S3 Trio32 (miro CRYSTAL 12SD)		Miro 3.01	86.0828%	78.0067%	88.8657%	72.2572%	76.7010%	97.0614%	76.9135%	92.8907%	83.5974%
S3 Vision868 (Number Nine 9FX Motion 531)		S3 868 1.41B5	93.9817%	87.2582%	92.3034%	63.4405%	54.9688%	98.0415%	88.6728%	84.4301%	82.8871%
Cirrus Logic CL-GD5434 (I-O DATA Major ACCELA GA-DVL II)		CL-GD543X V1.24 (Cirrus)	68.4041%	78.0067%	100.0000%	57.8058%	84.6076%	97.7104%	74.9851%	100.0000%	82.69%
S3 Trio64 (SPEA V7-MIRAGE P64)		S3 868/968 1.5B4	93.1220%	83.9361%	84.0919%	66.6888%	57.8268%	95.6306%	89.4831%	87.1915%	82.2463%
S3 Vision964 (Number Nine #9GXE64 Pro)		S3 Vision1.2B8 (S3 964 1.2B8)	85.1155%	89.4029%	78.5665%	72.2241%	64.6453%	98.6431%	76.8217%	81.5511%	80.8713%
ARK1000PV (Hercules VL-Bus Stingray (TNC Chemical))	Waitstate 0	2.50 (Ark2000 2.4 toolkit)	87.6948%	84.5669%	77.3695%	74.3454%	67.2566%	100.0000%	75.1742%	79.8472%	80.7818%
S3 Vision868 (Diamond Stealth Video)		Stealth Display Driver v2.15 (2.13)	100.0000%	100.0000%	65.6785%	100.0000%	80.4149%	99.8275%	100.0000%	0.0000%	80.7401%
S3 Trio32 (miro CRYSTAL 12SD)		S3 Trio 1.70.04	85.2230%	75.8621%	96.0195%	54.1929%	70.1581%	98.8318%	81.5427%	79.9647%	80.2244%
S3 Trio32 (miro CRYSTAL 12SD)		S3 Trio64V 1.69.02	87.5336%	74.2641%	94.0153%	55.3530%	68.6348%	97.1787%	79.4253%	80.3173%	79.5903%
ARK1000PV (Hercules VL-Bus Stingray (TNC Chemical))	Waitstate 0	1.3 (Bali)	87.9097%	83.9361%	72.6792%	72.2241%	61.1055%	97.0874%	76.3572%	76.3220%	78.4526%
S3 Vision864 (Diamond Stealth 64 DRAM VLB)		S3 864 1.50.02	88.5008%	78.5534%	85.5672%	55.3199%	52.2994%	95.6686%	84.1463%	78.6722%	77.3410%
CHIPS F64300 (? VLV100)	with XRAM Accelerator Cache (cache DRAM)	1.5.0 (CHIPS 643XX Display Drivers)	75.7657%	76.3667%	78.5943%	68.4455%	71.7540%	99.4774%	68.9732%	78.6134%	77.2488%
Trident TGUI9440AGi (National MicroSystems? "7343 Rev H3")	bus speed: ?33MHz	Trident UA6.4 (04)	83.3960%	72.8343%	73.7509%	70.3016%	56.8838%	95.8651%	66.1643%	91.9506%	76.3933%
ARK1000VL (TNC Chemical)	Waitstate 0	2.50 (Ark2000 2.4 toolkit)	82.3751%	65.0547%	73.7509%	72.2572%	63.3686%	98.0548%	73.9534%	78.6134%	75.9285%
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	Weitek P9100 Display Driver 2.30 (3.10) – 1	85.9753%	86.5854%	74.9617%	86.7087%	57.8413%	69.7474%	75.3038%	67.0975%	75.5276%
Trident TGUI9440-1 (Jaton VL 46A/V3)		Trident UA6.4 (04)	82.6975%	70.4794%	70.4662%	66.6556%	59.9304%	96.9768%	65.1974%	91.7156%	75.5149%
Alliance ProMotion-3210 (Miro Video 12PD)		1.06.08 (miro)	82.1601%	74.7687%	57.0772%	66.6888%	65.9945%	94.0760%	82.3475%	80.7286%	75.4802%
Trident TGUI9440AGi (National MicroSystems? "7343 Rev H3")	bus speed: ?33MHz	Trident UA6.2 (14)	84.1483%	73.2969%	67.5017%	70.3016%	48.4550%	98.9738%	63.1610%	97.5911%	75.4287%
ARK1000VL (TNC Chemical)	Waitstate 0	1.3 (Bali)	82.5363%	64.2977%	73.7509%	68.4455%	59.9304%	99.6624%	76.6272%	73.0317%	74.7853%
CHIPS F64300 (? VLV100)	without XRAM Accelerator Cache	1.5.0 (CHIPS 643XX Display Drivers)	70.6609%	72.3297%	84.0919%	59.1316%	68.7654%	99.4774%	66.1751%	76.6745%	74.6633%
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Waitstate 0	Avance Logic 1.5	75.0672%	62.1110%	85.6785%	59.0984%	61.1055%	97.7302%	69.3243%	86.7215%	74.6046%
Trident TGUI9440-1 (Jaton VL 46A/V3)		Trident UA6.2 (14)	79.4734%	74.2641%	69.4642%	66.6888%	49.1803%	95.4414%	64.6897%	93.5370%	74.0923%
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Waitstate 0	Avance Logic 2.0	71.6282%	56.6863%	85.6785%	55.3199%	59.9304%	95.9350%	69.0110%	86.5452%	73.7594%
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Waitstate 0	Avance Logic 2.3	77.9688%	62.8259%	84.0919%	55.3530%	57.8268%	96.7822%	70.0697%	70.0940%	73.0997%
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Waitstate 0	miro 1.20 (Avance Logic 1994.07.28)	76.0022%	59.1616%	82.7140%	58.6859%	62.1935%	87.6032%	69.5153%	84.6063%	72.5603%
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	SPEA BigWin v2.31 (3.10) – 1	91.2950%	92.3886%	75.1983%	83.9576%	59.9304%	99.3544%	0.0000%	67.8613%	71.2482%
IIT AGX015 (Hercules Graphite VL Pro single RAMDAC)		AGX.DRV 3.05 (Hercules 2.30) – 2	68.9414%	72.8343%	87.1538%	52.0053%	62.1935%	92.9577%	67.7092%	57.6381%	70.1792%
Cirrus Logic CL-GD5429 (Quantum Designs)		v1.00b (CL-GD5429) – 3	65.5024%	63.3726%	82.1155%	44.8459%	52.3139%	94.8531%	68.1143%	87.1328%	69.7813%
S3 805-Q (Digital Equipment Corp. PC76H-EA)		S3 2.50-06	70.5535%	62.4895%	73.7509%	46.4369%	52.3139%	96.3888%	67.4985%	74.3831%	67.9769%
S3 805-P (Diamond Stealth 24)		S3 2.50-06	72.3267%	62.8259%	72.6096%	45.6414%	50.6891%	97.4340%	66.7855%	74.8531%	67.8957%
S3 805i (Jaton VL41C/V5)		S3 2.50-06	68.5116%	54.9622%	69.4502%	38.8134%	49.9057%	96.4274%	61.8052%	70.0353%	63.7389%
Western Digital WD90C33 (Lung Hwa VLBUS3300)	JP1: 1-2; 3-4	WD90C33 1.3	72.1655%	58.7889%	38.3577%	58.9327%	42.7970%	96.4402%	62.4048%	72.3854%	62.7840%
Tseng ET4000/W32P (Gainward Cardex Challenger)	RAMDAC snoop enabled	ET4000/W32 1995.Feb.17.	76.3031%	68.7132%	31.9415%	50.0166%	33.6138%	97.7170%	64.7545%	62.1034%	60.6454%
Cirrus Logic CL-GD5426 (Genoa WindowsVGA 24 8500VL)		V1.50 (CL-GD5426/28 Version 1.74)	58.8393%	65.0547%	67.5296%	49.0885%	24.5757%	91.8540%	39.1671%	60.0470%	57.0195%
Cirrus Logic CL-GD5428 (HIS 5428)		V1.50 (CL-GD5426/28 Version 1.74)	57.0124%	67.8722%	68.4482%	42.6251%	24.0534%	90.1427%	36.9470%	60.5758%	55.9596%
Cirrus Logic CL-GD5428 (Alaris Tomahawk)		V1.50 (CL-GD5426/28 Version 1.74)	55.8839%	67.0311%	68.4621%	41.9291%	23.5311%	87.7160%	36.1260%	59.0482%	54.9659%
Trident TGUI9420DGi (? "7343L Rev 5")	bus speed: ?33MHz	Trident UG6.1 (09B)	81.5690%	62.4474%	78.5665%	39.4100%	56.8258%	0.0000%	60.7087%	59.9295%	54.9321%
Creative 3D Blaster VLB		1.01 (Creative)	62.0634%	56.3919%	37.1608%	44.8459%	45.8146%	81.2707%	56.1443%	52.9377%	54.5787%
Avance Logic ALG2201 (National MicroSystems ALI2201)		Avance Logic 1993.Jun.08	66.4159%	52.5652%	36.0473%	42.6251%	25.3300%	91.7608%	61.2110%	54.9941%	53.8687%
Cirrus Logic CL-GD5424 (? UN5424)		1.50 (CL-GD5422/CL-GD5424) – 3	57.1736%	63.5408%	67.5296%	22.8041%	19.9623%	89.8739%	37.8977%	47.8261%	50.8260%
NCR 77C32BLT (Genoa Hornet 8300VL)		Genoa 1.1A (ncr318b.drv 1994.Jul.18) – 4	61.6873%	74.8108%	28.8796%	61.9158%	37.8645%	0.0000%	55.9445%	73.9130%	49.3769%
Trident TGUI9400CXi (National MicroSystems "7343 Rev C1HK")	bus speed: <33MHz	Trident UL6.1 (03B)	59.5916%	54.4155%	64.7738%	25.7541%	45.1473%	89.2419%	48.6793%	0.0000%	48.4504%
NCR 77C22E+ (ZEOS 110-045-00)		NCR 77c22(e) 1995.Jun.01.	54.7018%	57.8638%	20.2088%	25.7541%	25.5331%	95.1276%	44.0123%	47.7086%	46.3637%
NCR 77C32BLT (Genoa Hornet 8300VL)		NCR 77c22(e) 1995.Jun.01.	57.6034%	58.1581%	20.0418%	22.0418%	25.3300%	94.1494%	43.5316%	49.7062%	46.3203%
Avance Logic ALG2201 (National MicroSystems ALI2201)		Avance Logic 1.38 (1993.Nov.30) – 5	69.6400%	49.7056%	35.2401%	36.6258%	25.3300%	90.8047%	59.8984%	0.0000%	45.9056%
UMC UM85C418F (Puretek PT-2037)		UMC 0.5A	50.6125%	51.8150%	18.6360%	17.6471%	19.0338%	0%	33.9535%	83.5900%	34.4110%
Trident TGUI9400CXi (National MicroSystems "7343 Rev C1HK")	bus speed: <33MHz	Trident UD5.5 (07) – 5	45.7818%	35.5341%	15.5045%	12.5621%	14.8992%	93.7103%	0.0000%	32.1387%	31.2663%
OAK OTI087 (Oak Technology V0874002) – 6	VESA. turbo. 486 mode	OAK-87. DISTbv1.6. rev b, d "WndSpeed" (87bwin.zip)	44.3310%	33.8940%	15.4489%	16.6722%	17.6991%	85.2756%	36.2394%	0.0000%	31.1950%
Trident TGUI9420DGi (? "7343L Rev 5")	bus speed: ?33MHz	Trident UD5.5 (07) – 5	44.4922%	35.6602%	15.7133%	12.7279%	15.0442%	84.0714%	0.0000%	31.7274%	29.9296%

Leaderboard of the worst result for each card (with only the best driver) in all 256-color Windows 3.1 tests except WinDoom, shown as a percentage (the best results are 100%, see the table above).
Video chip (video card)	driver	the worst result of the card	the test with the worst result
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Trident UX6.5 (03)	83.7079%	WinTach Word processing
S3 Vision868 (Diamond Stealth Video)	S3 Trio64V 1.69.02	79,3946%	WinTach Spreadsheet
S3 Trio64 (SPEA V7-MIRAGE P64)	SPEA BigWin v3.26, Release 0396	76.4982%	WinBench 96: Graphics WinMark 96
S3 Vision868 (Number Nine 9FX Motion 531)	S3 Trio64V 1.69.02	74.9914%	WinTach Spreadsheet
S3 Trio32 (miro CRYSTAL 12SD)	Miro 3.01	74.9914%	WinTach Spreadsheet
CHIPS F64300 (? VLV100)	1.5.0 (CHIPS 643XX Display Drivers)	71,0354%	WinTach Spreadsheet
ARK1000PV (Hercules VL-Bus Stingray (TNC Chemical))	2.50 (Ark2000 2.4 toolkit)	67.2566%	WinTach Paint
S3 Vision964 (Number Nine #9GXE64 Pro)	S3 Vision1.2B8 (S3 964 1.2B8)	64.6453%	WinTach Paint
ARK1000VL (TNC Chemical)	2.50 (Ark2000 2.4 toolkit)	63.3686%	WinTach Paint
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Avance Logic 1.5	61.1055%	WinTach Spreadsheet
Cirrus Logic CL-GD5434 (I-O DATA Major ACCELA GA-DVL II)	CL-GD543X V1.24 (Cirrus)	59.9931%	WinTach Spreadsheet
MGA IS-ATHENA R1 (Matrox Impression Lite)	MGA Revision 2.21 (Build 027)	59.9739%	WinTach Paint
Trident TGUI9440-1 (Jaton VL 46A/V3)	Trident UA6.4 (04)	59.9304%	WinTach Paint
Weitek Power 9100 (SPEA V7-STORM PRO)	Weitek P9100 Display Driver 2.30 (3.10)	57.8413%	WinTach Paint
Alliance ProMotion-3210 (Miro Video 12PD)	1.06.08 (miro)	57.0772%	WinTach CAD
Trident TGUI9440AGi (National MicroSystems? "7343 Rev H3")	Trident UA6.4 (04)	56.8838%	WinTach Paint
IIT AGX015 (Hercules Graphite VL Pro single RAMDAC)	AGX.DRV 3.05 (Hercules 2.30)	53.9732%	WinTach Spreadsheet
S3 Vision864 (Diamond Stealth 64 DRAM VLB)	S3 864 1.50.02	52.2994%	WinTach Paint
S3 805-Q (Digital Equipment Corp. PC76H-EA)	S3 2.50-06	48.1940%	WinTach Spreadsheet
S3 805-P (Diamond Stealth 24)	S3 2.50-06	47.3684%	WinTach Spreadsheet
Cirrus Logic CL-GD5429 (Quantum Designs)	v1.00b (CL-GD5429)	46.5428%	WinTach Spreadsheet
Trident TGUI9420DGi (? "7343L Rev 5")	Trident UG6.1 (09B)	40,9013%	WinTach Spreadsheet
S3 805i (Jaton VL41C/V5)	S3 2.50-06	40.2821%	WinTach Spreadsheet
Western Digital WD90C33 (Lung Hwa VLBUS3300)	WD90C33 1.3	38.3577%	WinTach CAD
Creative 3D Blaster VLB	1.01 (Creative)	37.1608%	WinTach CAD
Tseng ET4000/W32 (Gainward Cardex Challenger)	ET4000/W32 1995.Feb.17.	31.9415%	WinTach CAD
NCR 77C32BLT (Genoa Hornet 8300VL)	Genoa 1.1A (ncr318b.drv 1994.Jul.18)	28.8796%	WinTach CAD
Avance Logic ALG2201 (National MicroSystems ALI2201)	Avance Logic 1993.Jun.08	25.3300%	WinTach Paint
Cirrus Logic CL-GD5426 (Genoa WindowsVGA 24 8500VL)	V1.50 (CL-GD5426/28 Version 1.74)	24.5757%	WinTach Paint
Cirrus Logic CL-GD5428 (HIS 5428)	V1.50 (CL-GD5426/28 Version 1.74)	24.0534%	WinTach Paint
Cirrus Logic CL-GD5428 (Alaris Tomahawk rev E)	V1.50 (CL-GD5426/28 Version 1.74)	23.5311%	WinTach Paint
NCR 77C22E+ (ZEOS 110-045-00)	NCR 77c22(e) 1995.Jun.01.	20.2088%	WinTach CAD
Cirrus Logic CL-GD5424 (? UN5424)	1.50 (CL-GD5422/CL-GD5424)	19.9623%	WinTach Paint
Trident TGUI9400CXi (National MicroSystems "7343 Rev C1HK")	Trident UL6.1 (03B)	0%	WinBench 96: Graphics WinMark 96
UMC UM85C418F (Puretek PT-2037)	UMC 0.5A	0%	WinBench 96: Graphics WinMark 96
OAK OTI087 (OAK V0874002)	OAK-87. DISTbv1.6. rev b, d "WndSpeed" (87bwin.zip)	0%	WinBench 96: Graphics WinMark 96

Windows 3.1 - 16 million colors

In 16 million colors the WinBench 96: Graphics WinMark 96 test took too long, so I changed the test setup a bit: still 4DMS=HL3G-L4-VI (SiS 85C471 ST) motherboard, but with fastest BIOS settings as possible for each card; AMD Am5x86-P75 133 CPU; 16MB FPM memory; still 256KB motherboard (level 2) cache.

All Windows 3.1 drivers 16 million color results (Windows resolution is 800x600).
All minimum and maximum results are based on 4 runs.	comment	BIOS settings	driver	WinTach CAD 16M 800x600		WinTach Paint 16M 800x600		Wintune 2.0 16M 800x600 Kpixel/sec		WinBench 96: Graphics WinMark 96 16M 800x600
S3 Vision964 (Number Nine #9GXE64 Pro)		synchronize	9FX GXE64 Ver. 3.15 (3.10.061)	371	398.5	215	221.87	8481	8665	7.98	8.51
S3 Vision964 (Number Nine #9GXE64 Pro)		synchronize	S3 964 1.50.02	371	398.5	191.87	215.12	8742	8750	7.19	7.35
S3 Vision964 (Number Nine #9GXE64 Pro)		synchronize	S3 Vision1.2B8 (S3 964 1.2B8)	326	347.25	253.5	262.87	7870	8097	7.12	7.19
S3 Vision868 (Diamond Stealth Video)		synchronize	Stealth Display Driver v2.15 (2.13)	262.37	283.12	221.75	236.75	7754	7850	9.33	9.39
S3 Vision868 (Diamond Stealth Video)		synchronize	S3 Trio 1.70.04	358.62	384.25	202.78	208.75	7422	7524	7.15	7.25
S3 Vision868 (Diamond Stealth Video)		synchronize	S3 Trio64V 1.69.02	347	371	202.75	208.75	7524	7584	7.15	7.17
S3 Vision868 (Diamond Stealth Video)		synchronize	S3 868/968 1.5B4	358.62	384.25	177.37	186.75	7436	7604	6.85	6.85
S3 Vision868 (Diamond Stealth Video)		synchronize	S3 868 1.41B5	358.62	371	182	182	7320	7625	6.91	6.95
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	fastest	SPEA BigWin v2.31 (3.10) – 1	358.62	384.25	197.12	208.75	7350	7379	5.73	5.75
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	fastest	Weitek P9100 Display Driver 2.30 (3.10) 32 BPP	336.25	358.62	197.12	208.75	7288	7316	5.7	5.76
MGA IS-ATHENA R1 (Matrox Impression Lite)		fastest	MGA Revision 2.21 (Build 027)	260.25	278.43	171.75	183.56	7822	8187	7.37	7.58
S3 Trio64 (SPEA V7-MIRAGE P64)		fastest	S3 Trio 1.70.04	326	347	169	169	6157	6271	6.14	6.17
S3 Trio64 (SPEA V7-MIRAGE P64)		fastest	S3 Trio64V 1.69.02	326	336.37	169	169	6145	6191	6.14	6.18
S3 Vision864 (Diamond Stealth 64 DRAM VLB)		synchronize	S3 864 1.50.02	326.12	336.37	151	157.75	6336	6585	5.58	5.6
S3 Trio64 (SPEA V7-MIRAGE P64)		fastest	S3 868/968 1.5B4	336.25	347.25	147.87	154.37	6269	6335	5.4	5.67
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	fastest	Weitek P9100 Display Driver 2.30 (3.10) 24 BPP	260.25	278.25	143.81	152.06	7884	7908	5.55	5.64
S3 Vision868 (Number Nine 9FX Motion 531)		synchronize	S3 Trio 1.70.04	326	326.12	151	157.75	5796	5948	5.94	6.04
S3 Vision868 (Number Nine 9FX Motion 531)		synchronize	S3 Trio64V 1.69.02	299	316.5	151	154.37	5840	5873	5.93	6.01
S3 Vision868 (Number Nine 9FX Motion 531)		synchronize	S3 868 1.41B5	316.37	336.25	136.37	142	6004	6020	5.65	5.67
S3 Vision868 (Number Nine 9FX Motion 531)		synchronize	9FX MOTION Ver. 2.24 (3.10.061)	299	316.5	136.5	139.12	5804	5890	6.14	6.16
S3 Vision868 (Number Nine 9FX Motion 531)		synchronize	S3 868/968 1.5B4	307.5	316.5	139.12	142	5957	5973	5.64	5.67
S3 Trio64 (SPEA V7-MIRAGE P64)		fastest	SPEA BigWin v3.26, Release 0396	237.37	252.28	152.06	156.56	6729	6757	5.17	5.23
Alliance ProMotion-3210 (Miro Video 12PD)		fastest	1.06.08 (miro)	256.12	256.25	129	131.37	4740	4785	5.07	5.11
Cirrus Logic CL-GD5434 (I-O DATA Major ACCELA GA-DVL II)		fastest	CL-GD543X V1.24 (Cirrus)	307.37	326.12	120.25	122.37	4139	4297	4.17	4.19
Alliance ProMotion-3210 (Miro Video 12PD)		fastest	Alliance 1.06.00	239.12	244.62	126.75	129	4592	4687	5.11	5.15
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Waitstate auto		Trident UX6.5 (02)	noisy	noisy	noisy	noisy	noisy	noisy	noisy	noisy
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Waitstate auto		Trident UX6.5 (03)	noisy	noisy	noisy	noisy	noisy	noisy	noisy	noisy
Trident TGUI9660 (I-O DATA DRAGONSTAR 64 GA-DR2/VLB)	Waitstate auto		Trident UX6.6 (05)	noisy	noisy	noisy	noisy	noisy	noisy	noisy	noisy
ARK1000PV (Hercules VL-Bus Stingray (TNC Chemical))	Waitstate 0		1.3 (Bali)	no	no	no	no	no	no	no	no
ARK1000PV (Hercules VL-Bus Stingray (TNC Chemical))	Waitstate 0		2.50 (Ark2000 2.4 toolkit)	no	no	no	no	no	no	no	no
ARK1000VL (TNC Chemical)	Waitstate 0		1.3 (Bali)	no	no	no	no	no	no	no	no
ARK1000VL (TNC Chemical)	Waitstate 0		2.50 (Ark2000 2.4 toolkit)	no	no	no	no	no	no	no	no
Avance Logic ALG2201 (National MicroSystems ALI2201)			Avance Logic 1.38 (1993.Nov.30)	no	no	no	no	no	no	no	no
Avance Logic ALG2201 (National MicroSystems ALI2201)			Avance Logic 1993.Jun.08	no	no	no	no	no	no	no	no
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Waitstate 0		Avance Logic 1.5	no	no	no	no	no	no	no	no
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Waitstate 0		Avance Logic 2.0	no	no	no	no	no	no	no	no
Avance Logic ALG2228.A (miro CRYSTAL 10AD)	Waitstate 0		Avance Logic 2.3	no	no	no	no	no	no	no	no
CHIPS F64300 (? VLV100)	with XRAM Accelerator Cache		1.5.0 (CHIPS 643XX Display Drivers)	no	no	no	no	no	no	no	no
CHIPS F64300 (? VLV100)	without XRAM Accelerator Cache		1.5.0 (CHIPS 643XX Display Drivers)	no	no	no	no	no	no	no	no
Cirrus Logic CL-GD5424 (? UN5424)			1.50 (CL-GD5422/CL-GD5424)	no	no	no	no	no	no	no	no
Cirrus Logic CL-GD5426 (Genoa WindowsVGA 24 8500VL)			V1.50 (CL-GD5426/28 Version 1.74)	no	no	no	no	no	no	no	no
Cirrus Logic CL-GD5428 (Alaris Tomahawk)			V1.50 (CL-GD5426/28 Version 1.74)	no	no	no	no	no	no	no	no
Cirrus Logic CL-GD5428 (HIS 5428)			V1.50 (CL-GD5426/28 Version 1.74)	no	no	no	no	no	no	no	no
Cirrus Logic CL-GD5429 (Quantum Designs)			v1.00b (CL-GD5429)	no	no	no	no	no	no	no	no
Creative 3D Blaster VLB			1.01 (Creative)	no	no	no	no	no	no	no	no
IIT AGX015 (Hercules Graphite VL Pro single RAMDAC)			AGX.DRV 3.05 (Hercules 2.30)	no	no	no	no	no	no	no	no
NCR 77C22E+ (ZEOS 110-045-00)			NCR 77c22(e) 1995.Jun.01.	no	no	no	no	no	no	no	no
NCR 77C32BLT (Genoa Hornet 8300VL)			Genoa 1.1A (ncr318b.drv 1994.Jul.18)	no	no	no	no	no	no	no	no
NCR 77C32BLT (Genoa Hornet 8300VL)			NCR 77c22(e) 1995.Jun.01.	no	no	no	no	no	no	no	no
OAK OTI087 (Oak Technology V0874002)	VESA, turbo, 486 mode		OAK-87, DISTbv1.6, rev b, d WndSpeed (87bwin.zip)	no	no	no	no	no	no	no	no
S3 805-P (Diamond Stealth 24)			S3 2.50-06	no	no	no	no	no	no	no	no
S3 805-Q (Digital Equipment Corp. PC76H-EA)			S3 2.50-06	no	no	no	no	no	no	no	no
S3 805i (Jaton VL41C/V5)			S3 2.50-06	no	no	no	no	no	no	no	no
S3 Trio32 (miro CRYSTAL 12SD)			Miro 3.01 (3.10.061)	no	no	no	no	no	no	no	no
S3 Trio32 (miro CRYSTAL 12SD)			S3 Trio 1.70.04	no	no	no	no	no	no	no	no
S3 Trio32 (miro CRYSTAL 12SD)			S3 Trio64V 1.69.02	no	no	no	no	no	no	no	no
Trident TGUI9400CXi (National MicroSystems "7343 Rev C1HK")	bus speed: <33MHz		Trident UD5.5 (07)	no	no	no	no	no	no	no	no
Trident TGUI9400CXi (National MicroSystems "7343 Rev C1HK")	bus speed: <33MHz		Trident UL6.1 (03B)	no	no	no	no	no	no	no	no
Trident TGUI9420DGi (? "7343L Rev 5")	bus speed: ≤33MHz		Trident UD5.5 (07)	no	no	no	no	no	no	no	no
Trident TGUI9420DGi (? "7343L Rev 5")	bus speed: ≤33MHz		Trident UG6.1 (09B)	no	no	no	no	no	no	no	no
Trident TGUI9440-1 (Jaton VL 46A/V3)			Trident UA6.2 (14)	no	no	no	no	no	no	no	no
Trident TGUI9440-1 (Jaton VL 46A/V3)			Trident UA6.4 (04)	no	no	no	no	no	no	no	no
Trident TGUI9440AGi (National MicroSystems? "7343 Rev H3")	bus speed: ≤33MHz		Trident UA6.2 (14)	no	no	no	no	no	no	no	no
Trident TGUI9440AGi (National MicroSystems? "7343 Rev H3")	bus speed: ≤33MHz		Trident UA6.4 (04)	no	no	no	no	no	no	no	no
Tseng ET4000/W32P (Gainward Cardex Challenger)	RAMDAC snoop enabled		ET4000/W32 1995.Feb.17.	no	no	no	no	no	no	no	no
Western Digital WD90C33 (Lung Hwa VLBUS3300)	JP1: 1-2; 3-4		WD90C33 1.3	no	no	no	no	no	no	no	no
UMC UM85C418F (Puretek PT-2037)			UMC 0.5A	no	no	no	no	no	no	no	no

All Windows 3.1 drivers 16 million color results (Windows resolution is 800x600) results in percentage (the best results are the 100%).
All minimum and maximum results are based on 4 runs.	comment	BIOS settings	driver	WinTach CAD %	WinTach Paint %	Wintune 2.0 %	WinBench 96: Graphics WinMark 96 %	AVERAGE
S3 Vision964 (Number Nine #9GXE64 Pro)		synchronize	9FX GXE64 Ver. 3.15 (3.10.061)	100	84,6	98,02	88,09	92,6784%
S3 Vision964 (Number Nine #9GXE64 Pro)		synchronize	S3 964 1.50.02	100	78,82	100	77,67	89,1221%
S3 Vision964 (Number Nine #9GXE64 Pro)		synchronize	S3 Vision1.2B8 (S3 964 1.2B8)	87,49	100	91,28	76,44	88,8040%
S3 Vision868 (Diamond Stealth Video)		synchronize	Stealth Display Driver v2.15 (2.13)	70,89	88,79	89,21	100	87,2221%
S3 Vision868 (Diamond Stealth Video)		synchronize	S3 Trio 1.70.04	96,54	79,7	85,45	76,92	84,6510%
S3 Vision868 (Diamond Stealth Video)		synchronize	S3 Trio64V 1.69.02	93,31	80,85	86,37	76,5	84,2567%
S3 Vision868 (Diamond Stealth Video)		synchronize	S3 868/968 1.5B4	96,54	70,52	85,98	73,18	81,5551%
S3 Vision868 (Diamond Stealth Video)		synchronize	S3 868 1.41B5	94,82	70,49	85,44	74,04	81,1968%
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	fastest	SPEA BigWin v2.31 (3.10) – 1	96,54	78,6	84,2	61,33	80,1672%
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	fastest	Weitek P9100 Display Driver 2.30 (3.10) 32 BPP	90,3	78,6	83,49	61,22	78,4024%
MGA IS-ATHENA R1 (Matrox Impression Lite)		fastest	MGA Revision 2.21 (Build 027)	70	68,81	91,52	79,86	77,5490%
S3 Trio64 (SPEA V7-MIRAGE P64)		fastest	S3 Trio 1.70.04	87,46	65,46	71,05	65,76	72,4311%
S3 Trio64 (SPEA V7-MIRAGE P64)		fastest	S3 Trio64V 1.69.02	86,08	65,46	70,52	65,81	71,9676%
S3 Vision864 (Diamond Stealth 64 DRAM VLB)		synchronize	S3 864 1.50.02	86,09	59,79	73,87	59,72	69,8691%
S3 Trio64 (SPEA V7-MIRAGE P64)		fastest	S3 868/968 1.5B4	88,82	58,53	72,06	59,14	69,6365%
Weitek Power 9100 (SPEA V7-STORM PRO)	IRQ9	fastest	Weitek P9100 Display Driver 2.30 (3.10) 24 BPP	69,98	57,3	90,28	59,78	69,3339%
S3 Vision868 (Number Nine 9FX Motion 531)		synchronize	S3 Trio 1.70.04	84,75	59,79	67,14	64	68,9183%
S3 Vision868 (Number Nine 9FX Motion 531)		synchronize	S3 Trio64V 1.69.02	79,99	59,14	66,96	63,78	67,4672%
S3 Vision868 (Number Nine 9FX Motion 531)		synchronize	S3 868 1.41B5	84,81	53,91	68,74	60,47	66,9825%
S3 Vision868 (Number Nine 9FX Motion 531)		synchronize	9FX MOTION Ver. 2.24 (3.10.061)	79,99	53,38	66,85	65,71	66,4805%
S3 Vision868 (Number Nine 9FX Motion 531)		synchronize	S3 868/968 1.5B4	81,09	54,44	68,2	60,42	66,0381%
S3 Trio64 (SPEA V7-MIRAGE P64)		fastest	SPEA BigWin v3.26, Release 0396	63,63	59,77	77,1	55,56	64.0133%
Alliance ProMotion-3210 (Miro Video 12PD)		fastest	1.06.08 (miro)	66,59	50,42	54,45	54,38	56.4604%
Cirrus Logic CL-GD5434 (I-O DATA Major ACCELA GA-DVL II)		fastest	CL-GD543X V1.24 (Cirrus)	82,33	46,99	48,23	44,66	55.5491%
Alliance ProMotion-3210 (Miro Video 12PD)		fastest	Alliance 1.06.00	62,86	49,53	53,05	54,81	55.0619%

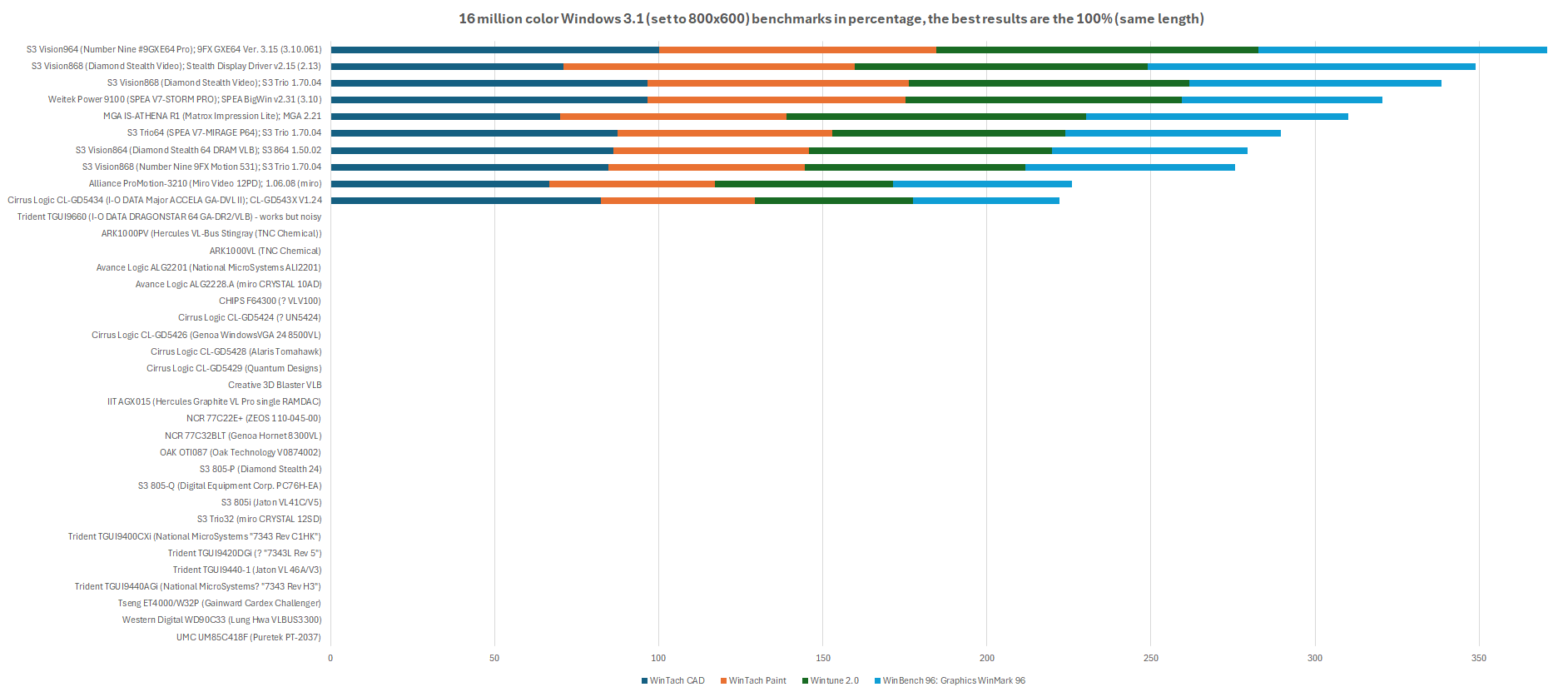

All 16-million-color Windows 3.1 benchmarks

1: For LCD/TFT monitor, in driver setup, select generic monitor.

2: The number on the percentage bar in the WinG display performance test is unreadable.

3: You have to install this driver before installing WinG.

4: There is a small color problem in the WinG display performance test and WinG applications (like WinDoom) when using 256 colors.

5: This driver includes Windows 3.11 *.FON files (23pcs), these are not work with Windows 3.1. For 3.1 you should replace driver installer *.FO_ files to 3.1 ones, or before driver install backup your *.FON files and after driver install restore them.

6: If the system boots using the Adaptec AHA-1542CF SCSI controller, garbage pixels appear in all video modes while the HDD is active/loading and the screen content changes (like moving the mouse cursor). With an IDE HDD, it is OK.

7: This card produces random green pixels in 16 million color mode. I tested it with different memory chips and motherboards, but the problem remained.

8: This driver (or card) has serious color problem in 16 million color mode.

I have tested Doom II For Windows 95 on Windows 95, but much slower than Doom II For Windows 3.1 so I have dropped Win95 benchmarks.

2026.January.26 → Finish and upload.
2026.January.31 → Western Digital WD90C33 (Lung Hwa VLBUS3300) jumper set to JP1: 1-2; 3-4 and retest. In Wolfenstein 3D it is 25% faster than without JP1 3-4. Special thanks to TheMobRules!
